Size, weight and mesh fields
Read 660mm x 580mm, 4.5kg and stainless-steel mesh as separate specification fields before comparing screens.
Read noteNOV AX-1 / replacement screen panel
Source NOV AX-1 Replacement Screens Around Size, Mesh and Weight
When choosing a shaker screen manufacturer, keep the AX-1 screen size, stainless-steel mesh, front-loading fit and consumable boundary in the same review.

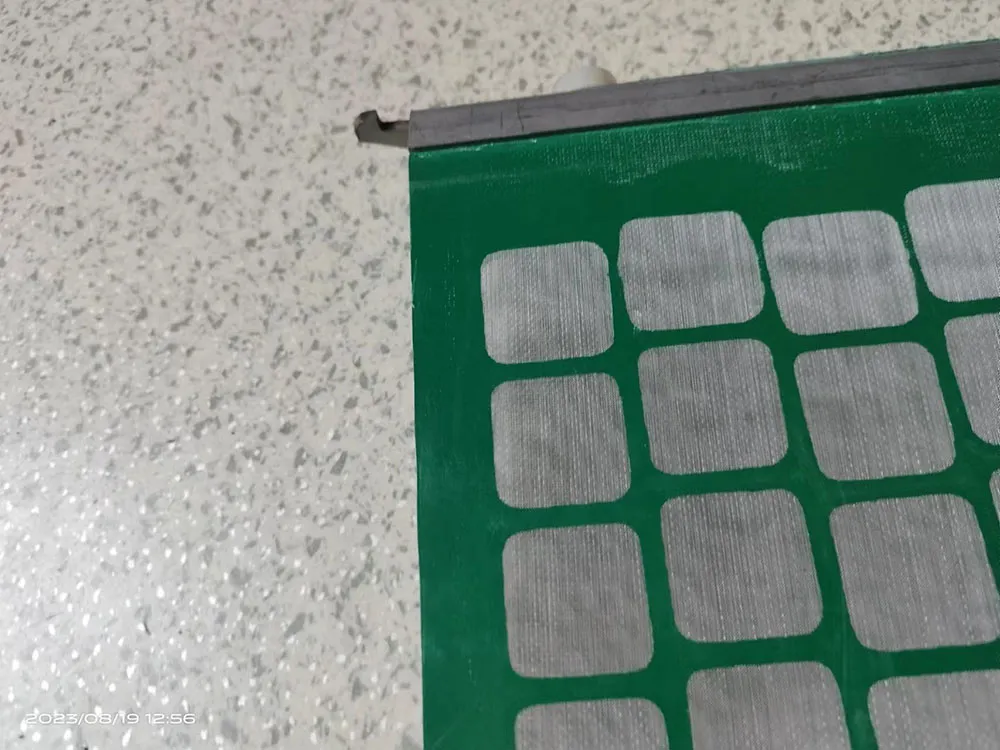

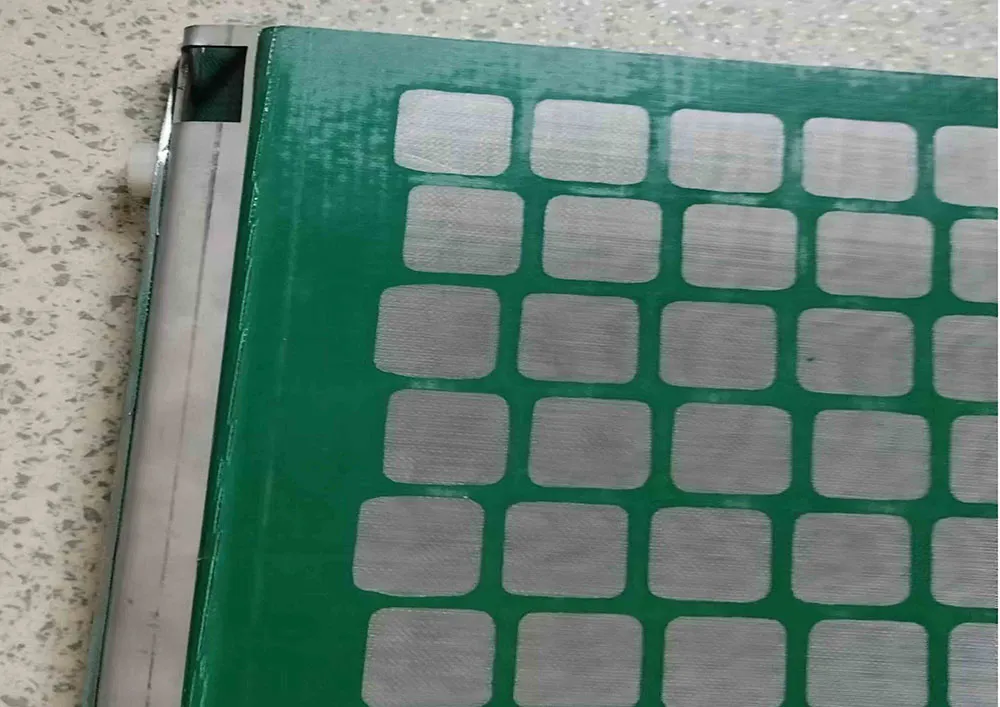

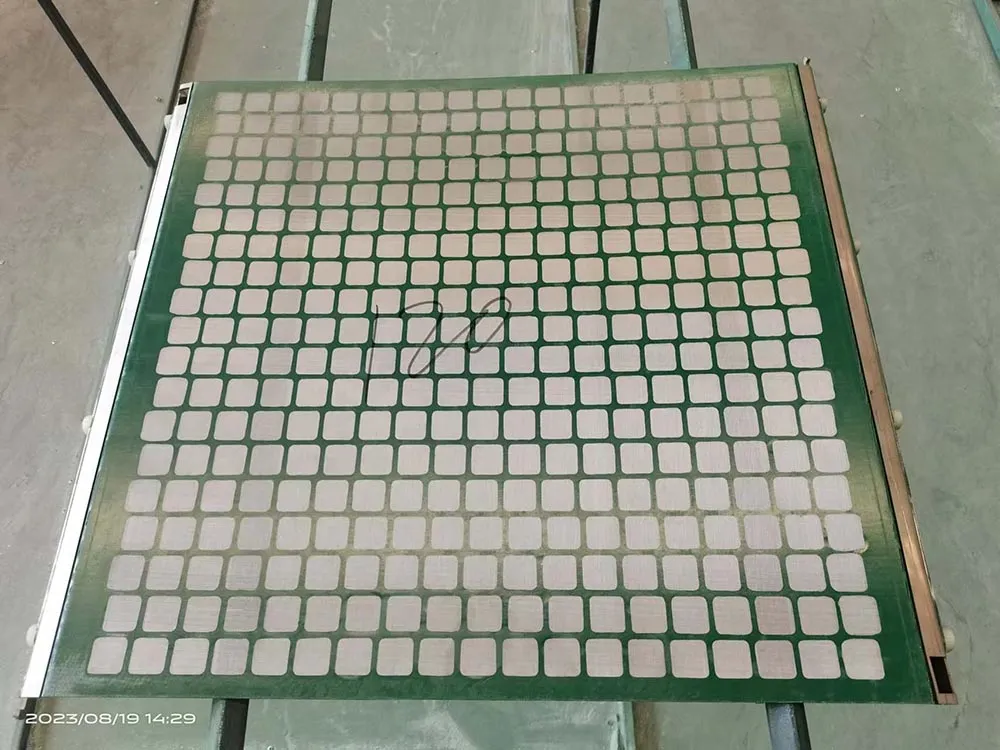

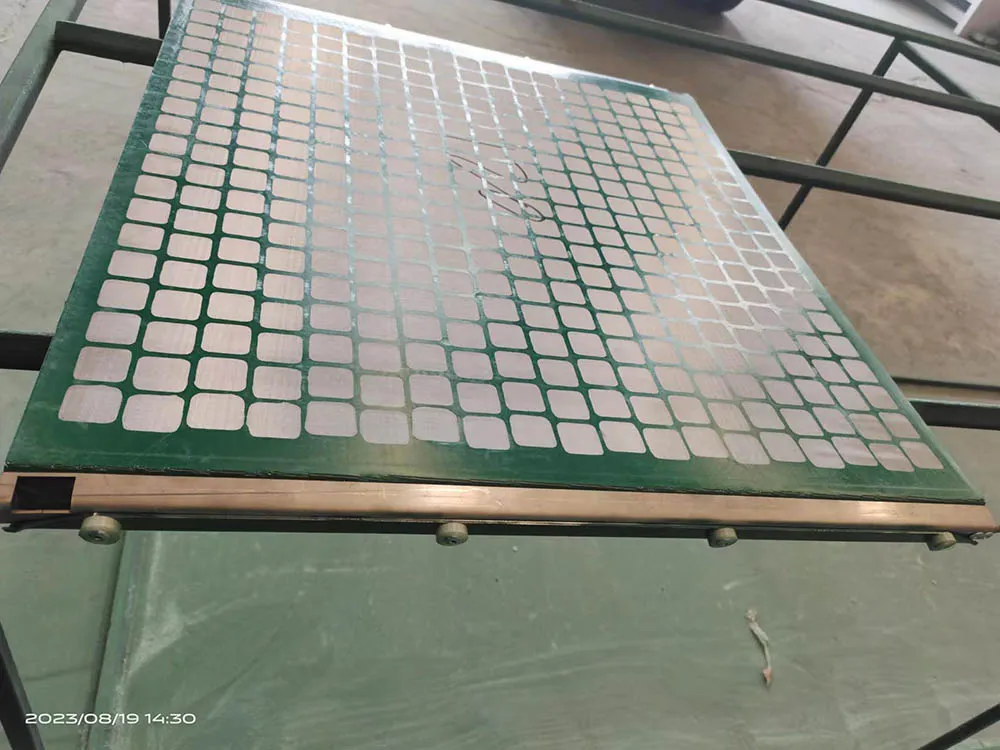

This replacement shaker screen is described around 660mm x 580mm dimensions, 4.5kg panel weight, pre-tensioned multi-panel construction and front-loaded replacement handling.
Screen boundary
Keep the Screen Panel Separate From the Shaker System
The order should describe the consumable screen panel clearly. Motor power, G force and screen count help identify the AX-1 system context, but they should not turn the screen into a full shaker purchase.
Physical fit
Start with 660mm x 580mm
Place the screen dimensions beside AX-1 wording so the warehouse and rig team compare the same panel format.
Material form
Read mesh and tension together
Stainless-steel wire mesh and pre-tensioned multi-panel construction belong in the same specification line.
Replacement role
Keep consumable scope clear
The screen plate is the replaced consumable. The structural support and full shaker system should stay outside the screen order line.
Fit and handling fields
Read Size, Weight and Front-Loading Fit Together
Screen orders are easier to compare when the panel size, weight, mesh material and loading method sit in one table instead of scattered through a parts list.
| Screen format | NOV AX-1 / Axiom-1 replacement shaker screen wording. |
|---|---|
| Dimensions | 660mm x 580mm. |
| Panel weight | 4.5kg per screen panel. |
| Mesh and structure | Stainless-steel wire mesh with pre-tensioned, multi-panel construction. |
| Loading method | Front-loaded screen handling with pneumatic clamping and locking wedge wording. |
| System context | AX-1 shaker context includes dual 5KW VFD motors, 50-67Hz frequency, 5-7G force and 18 screen panels. |
RFQ preparation
Prepare Screen Replacement Inputs
A useful inquiry tells PRM which screen panel is needed, how it will be loaded and what surrounding drilling-fluid parts are being reviewed.
Panel line
- AX-1 / Axiom-1 wording.
- 660mm x 580mm size.
- 4.5kg screen panel.
Mesh line
- Stainless-steel mesh.
- Pre-tensioned construction.
- Screen count or rig need.
Handling line
- Front-loading access.
- Clamping or wedge details.
- Packaging and replacement schedule.
Related drilling parts
Compare Nearby Screening and Desander Parts
Keep each drilling-fluid part on its own line. These PRM product pages support adjacent maintenance planning without borrowing specifications for the AX-1 screen.

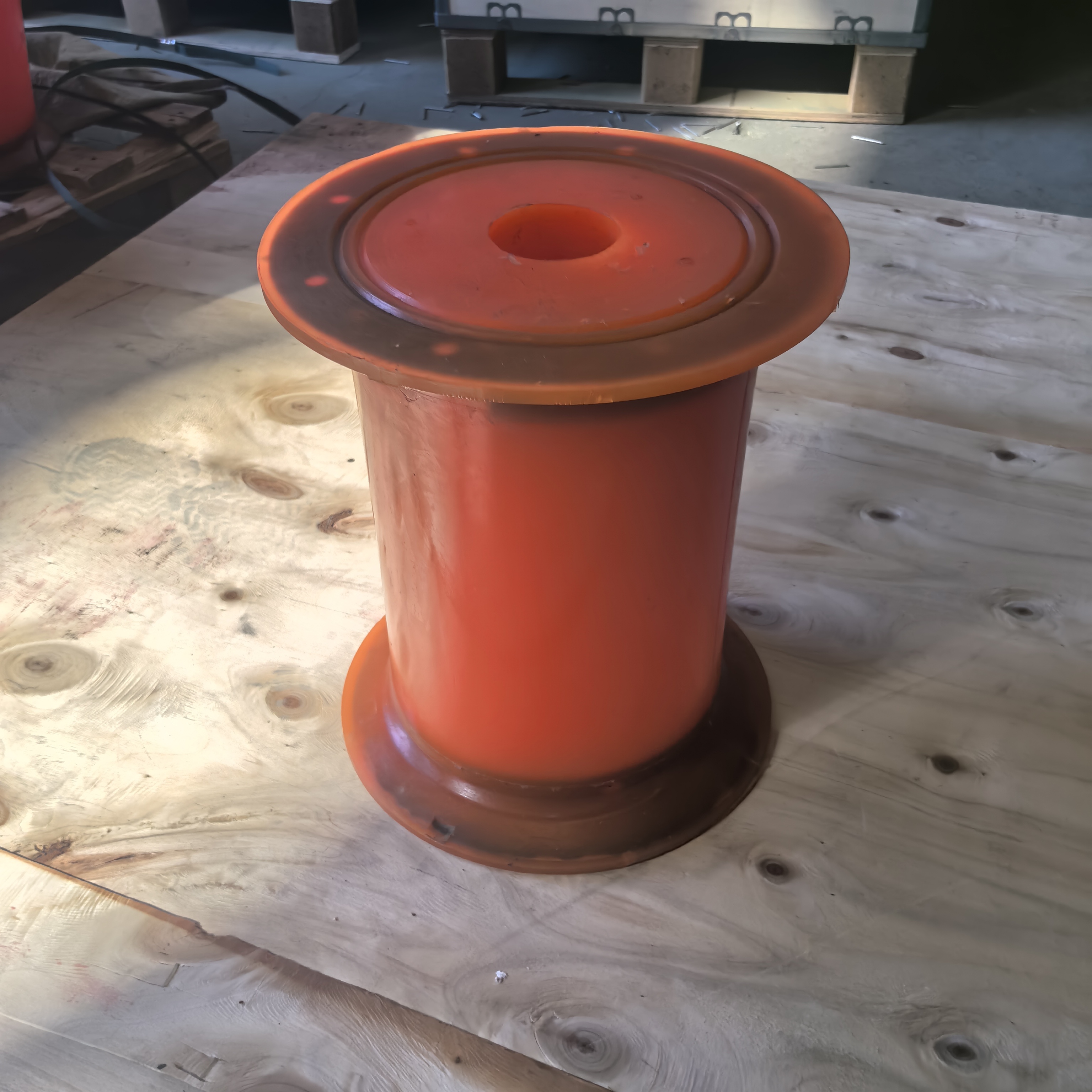

12 inch body middle
Use this path when the maintenance order also includes middle-body desander cone components.
View product

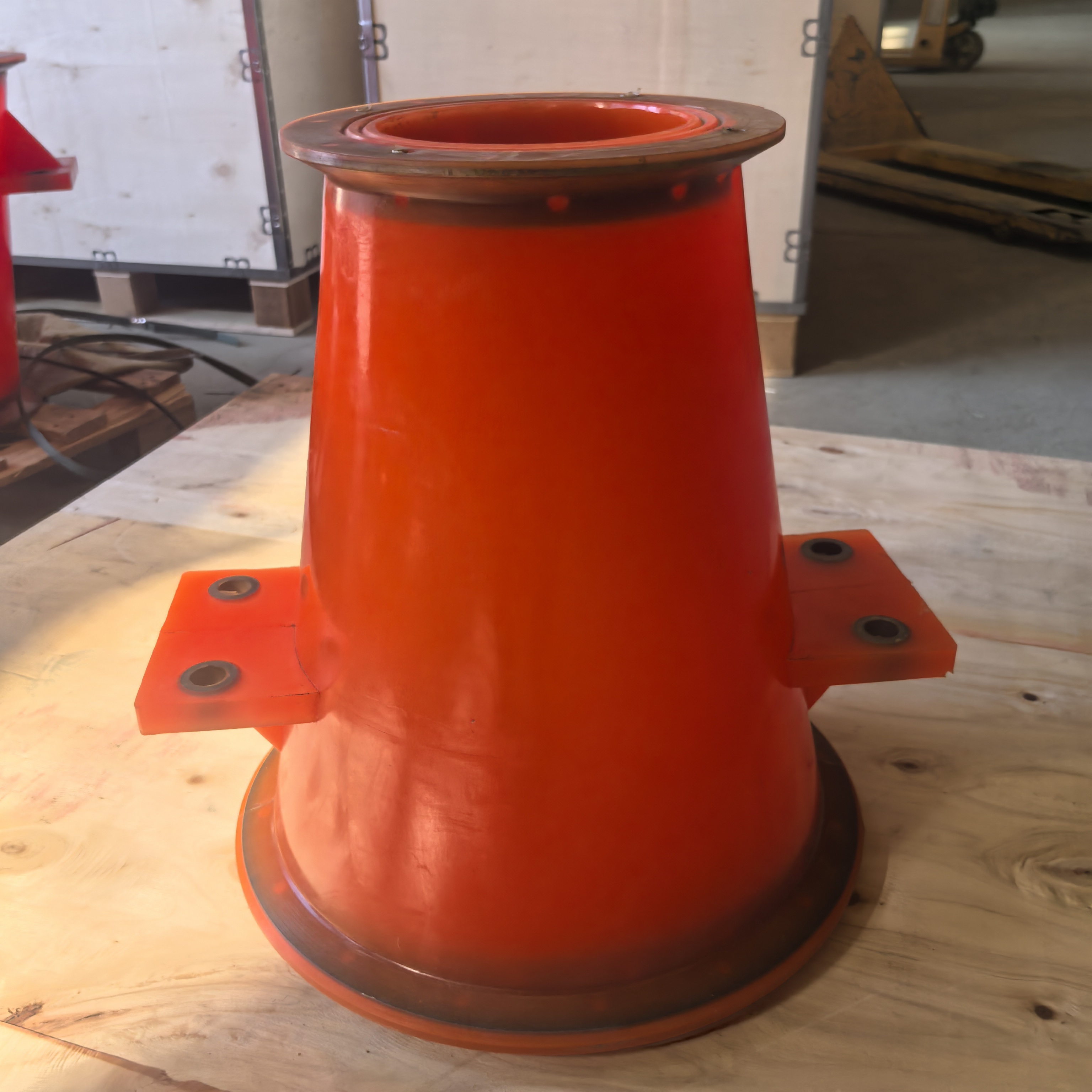

12 inch desander body
Use this path when the solids-control order includes cone-body replacement parts.
View product

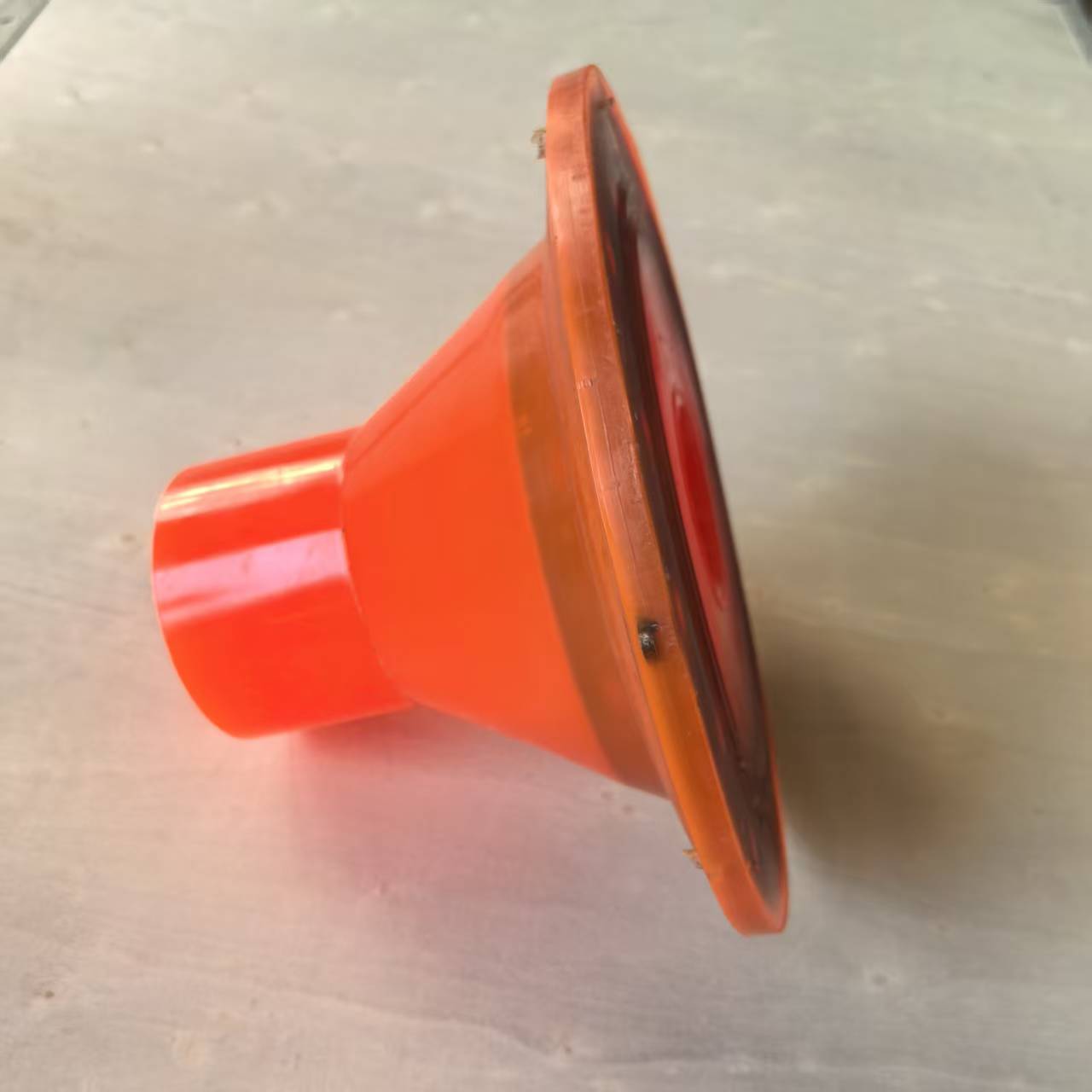

APEX valve part
Use this path when valve components are being checked beside desander cone spares.
View product

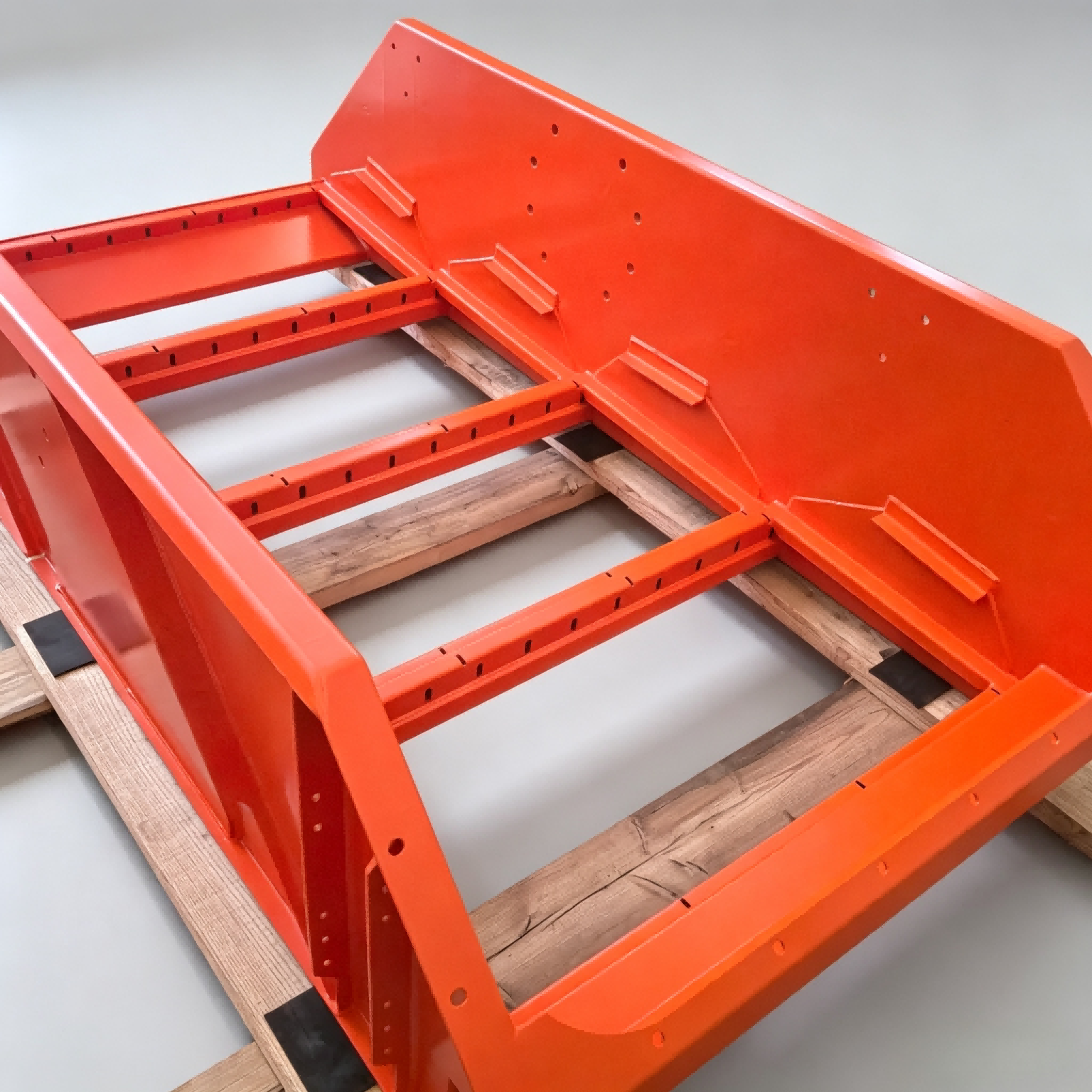

Mongoose PT retrofit
Use this path when the project involves shaker frame or basket retrofit planning.
View productProfessional reading
Three Notes for Cleaner AX-1 Screen Decisions
These PRM articles support clearer decisions around screen specifications, front-loaded replacement and the screen's role inside solids control.
FAQ
NOV AX-1 Replacement Screen FAQ
Use these questions to keep the replacement screen order focused on the panel, the mesh and the front-loading fit.
What size should be used for the AX-1 replacement screen?
Use 660mm x 580mm as the screen size field in the inquiry.
What is the listed panel weight?
The replacement screen panel is listed at 4.5kg.
What mesh construction should be discussed?
Discuss stainless-steel wire mesh and pre-tensioned multi-panel construction in the same specification line.
Is this page about a full shaker?
No. The page focuses on the replacement screen panel, not a complete shaker or a full solids-control system.
What loading details matter for maintenance teams?
Front-loading access, pneumatic clamping and locking wedge wording help a team describe how the screen is handled.
Where should quote questions go?
Use the PRM contact page with the AX-1 wording, screen size, mesh needs, quantity and replacement schedule.
