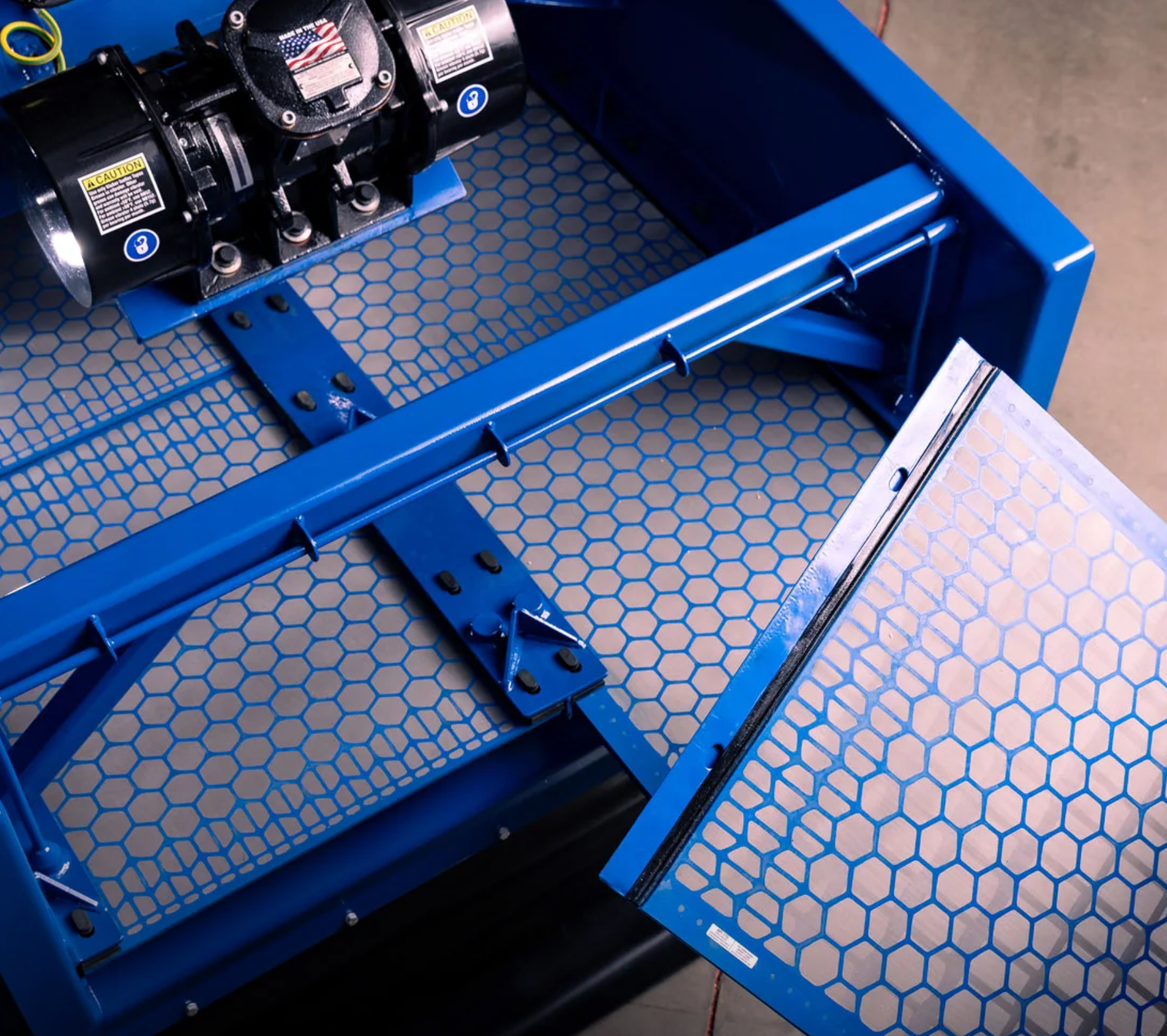

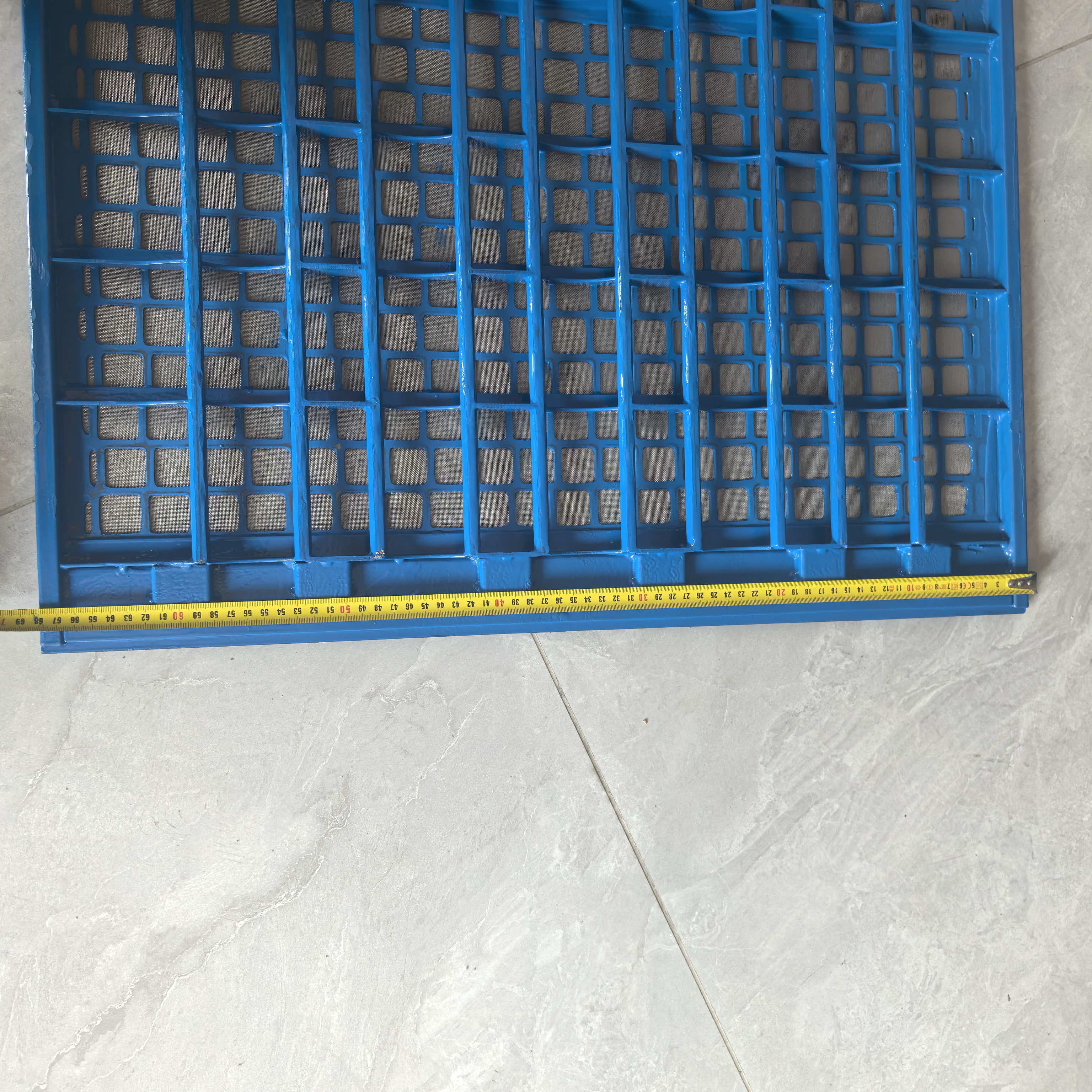

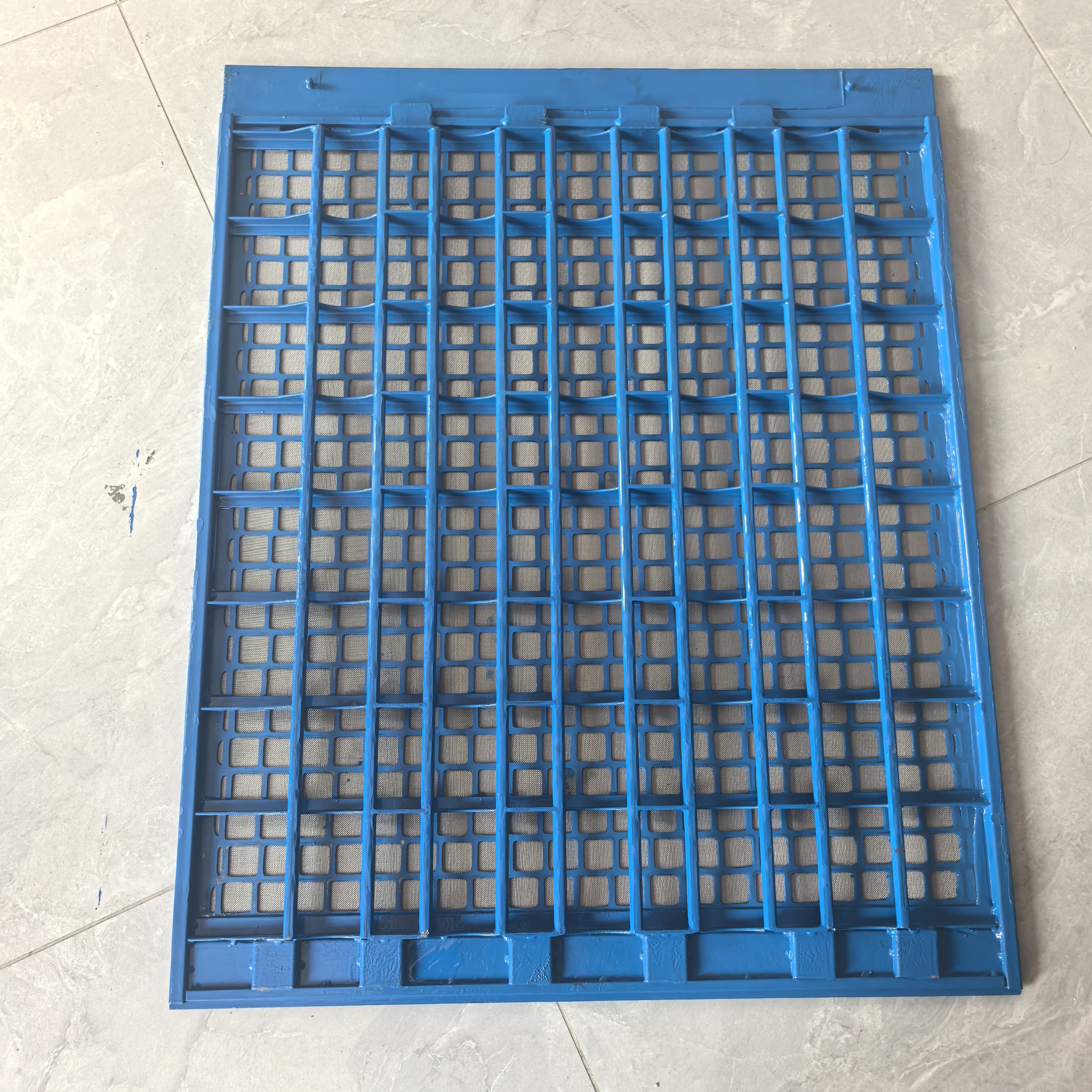

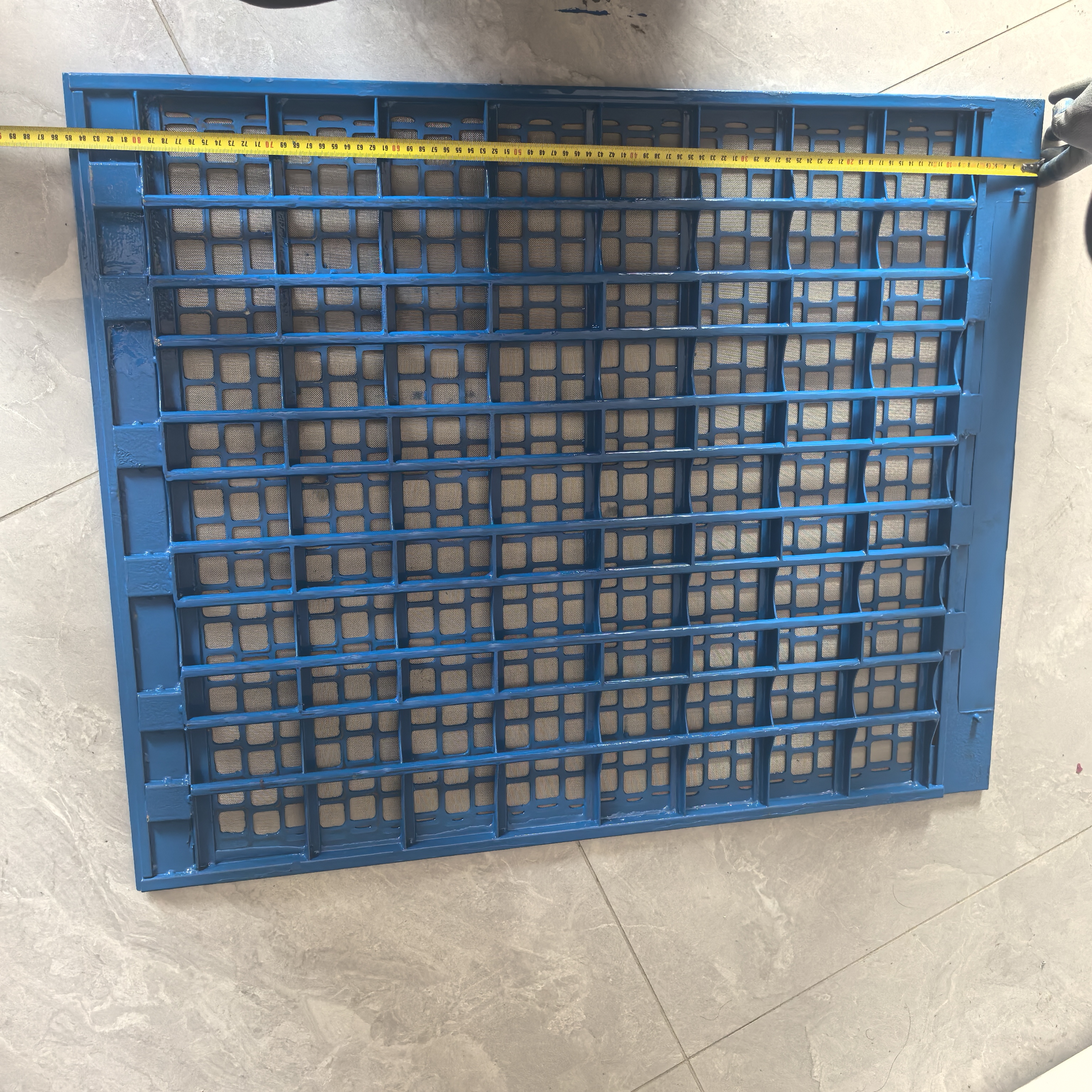

We have innovated the screen design for the Brandt shale shaker by replacing the original hexagonal opening pattern with an offset, one-square-inch square mesh grid. This fundamental change is engineered to systematically enhance the overall performance of the shaker screen through several interconnected mechanisms:
1. Enhanced Structural Support:
Original Hexagonal Design: While hexagons offer good inherent mechanical stability, the relatively fewer intersection points (nodes) in the pattern can lead to localized insufficient support under continuous load from drilling cuttings and vibrational stress.

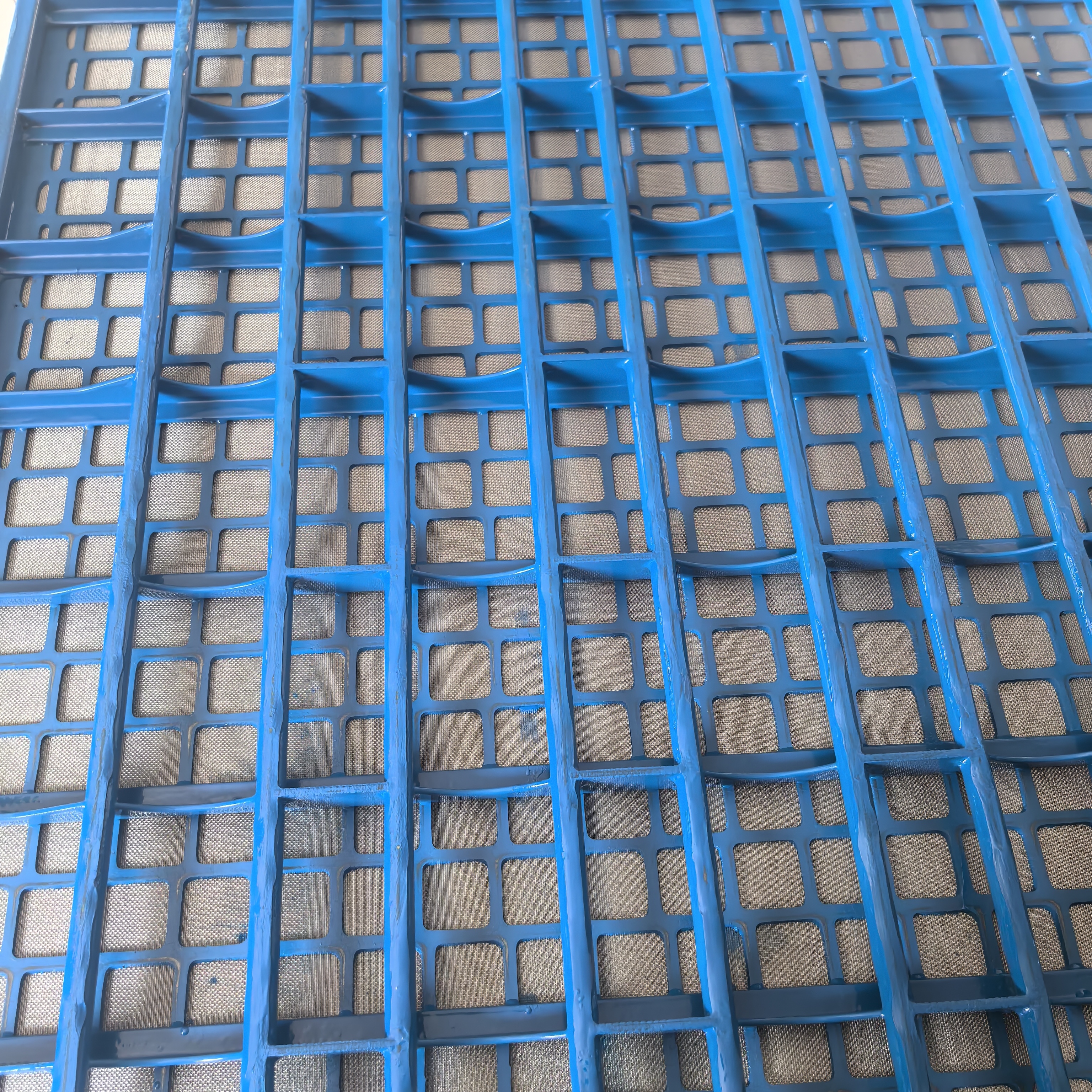

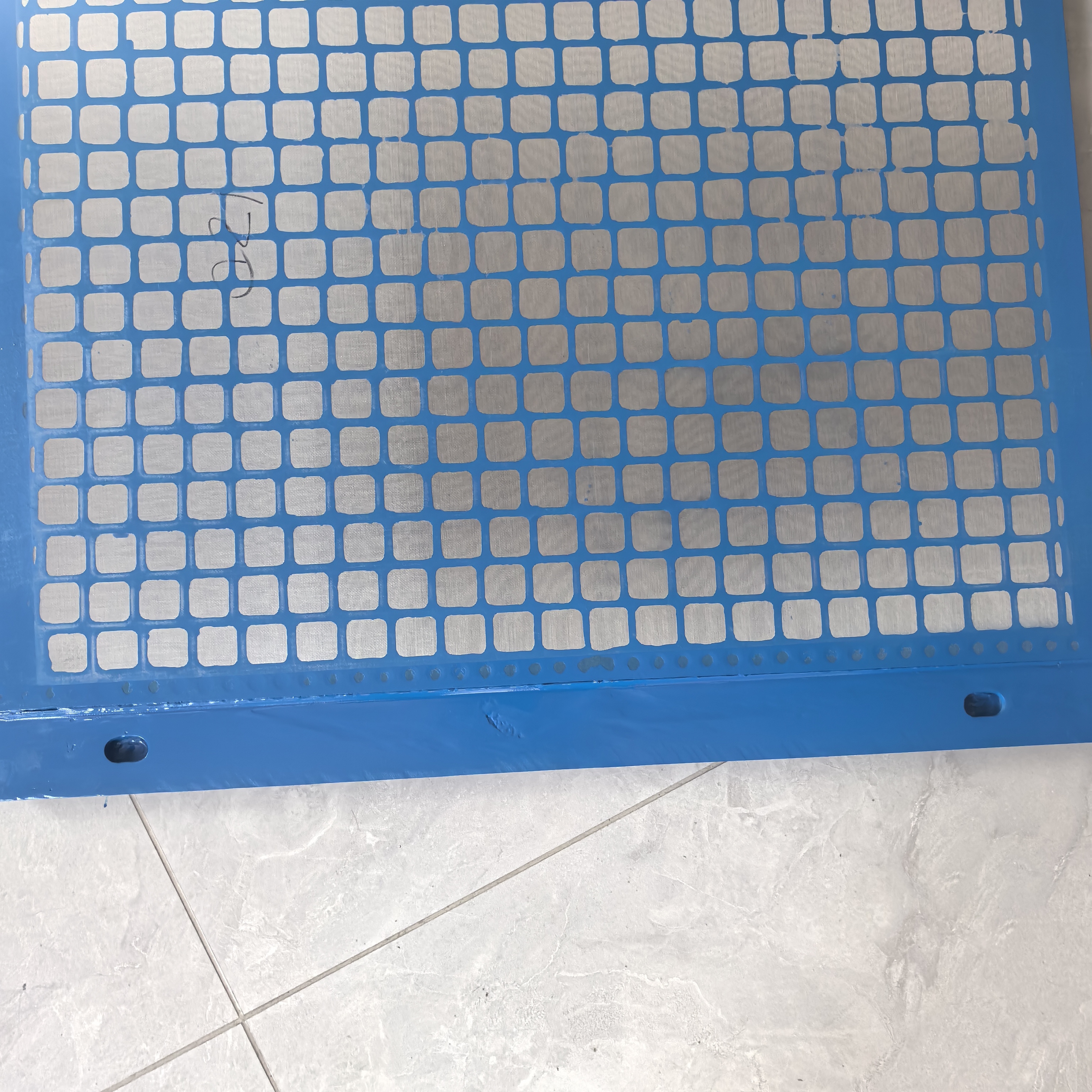

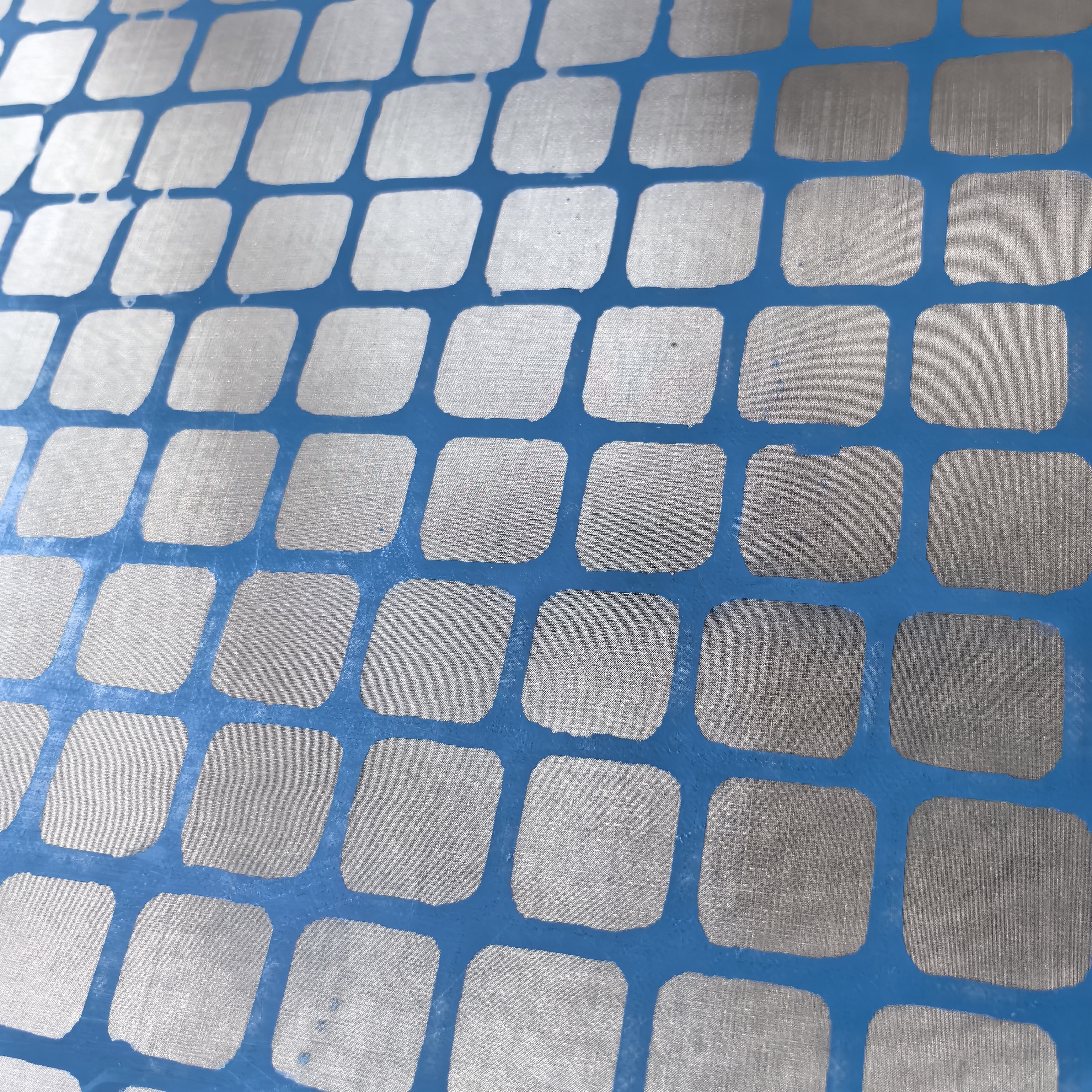

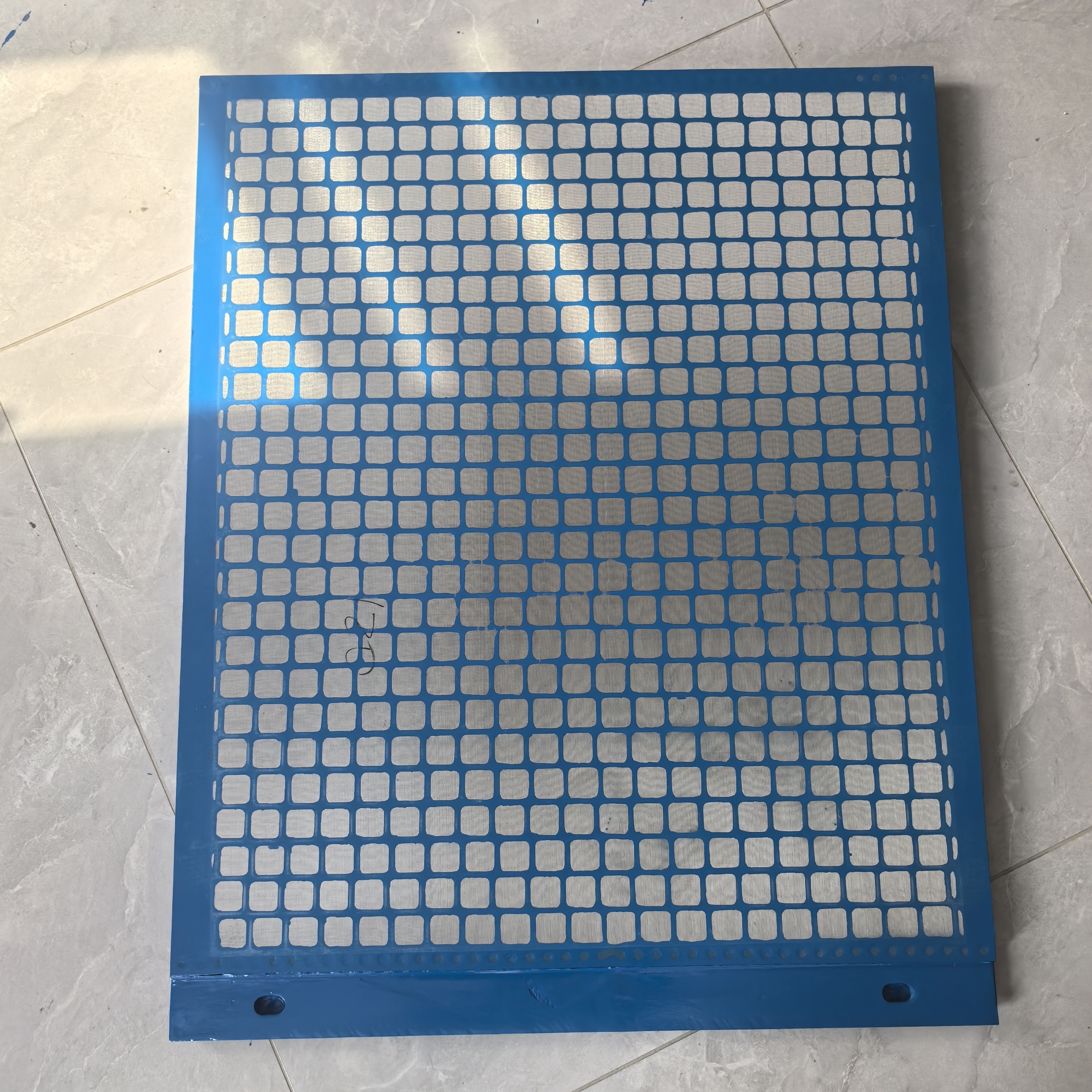

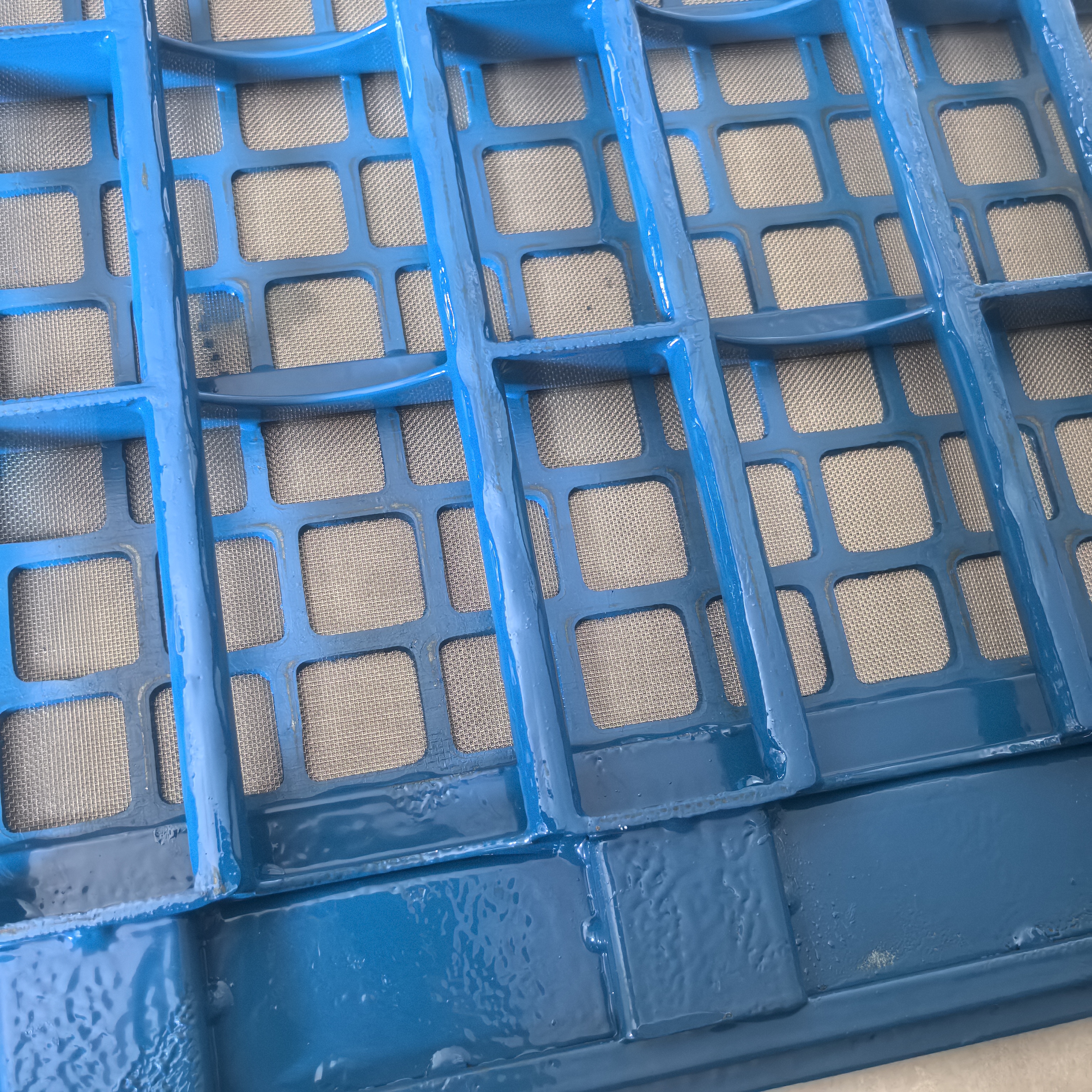

New Square Mesh (Offset Arrangement): The shift to a square grid significantly increases the number of wire intersection points (nodes) per unit area. Each node acts like a miniature support column. This denser array of nodes, combined with the backing perforated plate, creates a greater number and more uniform distribution of support points. This substantially improves the screen's resistance to impact deformation and fatigue from cuttings, thereby extending screen life.
2. Optimized Wire Mesh Elasticity and Vibration Transmission:
"Beam" Effect of Square Mesh: Each individual wire in the square grid functions like a short beam. In the offset arrangement, vibrational energy is transferred more evenly and efficiently across the entire screen surface along this crisscrossing network of "beams."
Synergistic Elasticity: The dense nodes and uniform wire distribution provide a more consistent elastic response across the screen in the vertical direction. This results in a more uniform "bouncing" action across the entire bed during vibration, rather than localized flexing. This improved, homogeneous elasticity promotes a more effective and gentler tossing of cuttings, reducing the risk of near-mesh-size particles becoming lodged.
3. Prolonged Cuttings Residence Time and Improved Drying Efficiency:
Altered Material Trajectory: The enhanced, uniform elasticity, coupled with the non-linear pathways created by the offset pattern, alters the travel trajectory of cuttings on the screen. Cuttings are less likely to roll or bounce in straight lines; instead, they undergo increased random motion involving collisions and tumbling.
"Trampoline" Effect: The improved screen behaves like an optimized trampoline, causing cuttings to be tossed and spend more time in the air before landing back on the mesh, thereby extending their effective residence time on the screen deck.
Maximized Drying and Separation: The increased residence time allows for more thorough exposure to vibrational G-forces and air flow. This enables:
More Efficient Solid-Liquid Separation: Adhered fluid on solid particles has more opportunity to be "shaken" free and separated through the mesh.
Superior Drying Performance: Increased particle agitation, collisions, and tumbling help break up mud clots, allowing internal moisture to escape. This yields drier discharged cuttings with lower moisture content, which is the ultimate objective of this design.
In summary, the transition from a hexagonal to an offset square mesh pattern represents a systematic optimization from geometric structure to mechanical performance and finally to process outcome. It strengthens the structure by increasing support points, improves vibration transfer by homogenizing elasticity, and ultimately leverages the core mechanism of extended material residence time to significantly enhance the drying and separation efficiency of the shale shaker.
