1.The three main component (there is no DNV certificate)

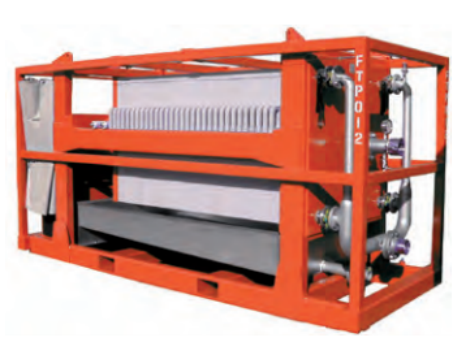

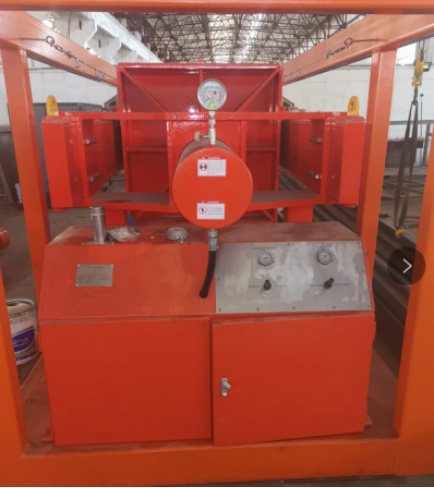

DE Filter Press
- 1200 ft.sq filtration capacity
- Polypropylene plates and cloths
- Electrical motor driven oil over hydraulic double acting rams
- Pneumatic Piston Actuation.
- 4“inlet/outlet FIG206 WECOhammer union
- 4”oil filled pressure gauge
- Design pressure 7 BARc/w pressure relief value
- 1250mm*1250mm*70mm filter plate each ,total 40 EA.
- Weight 9 Mtons
- Dimensions3mx 1.75m x 2.2m (L x W x H)
- Lifting frame and certified slings
- Flow rate 15bpm
Unit Price(usd)：70,000.00

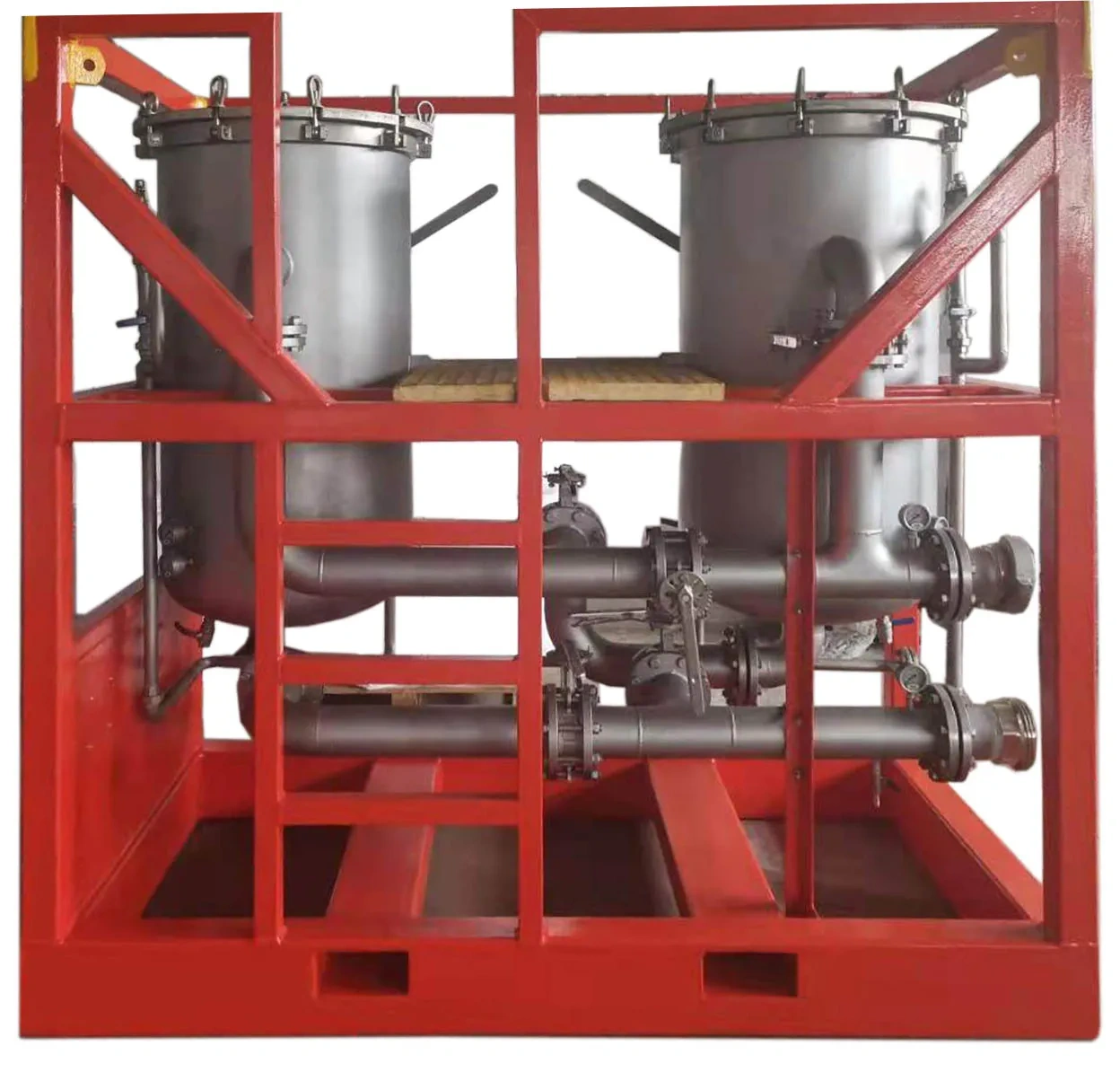

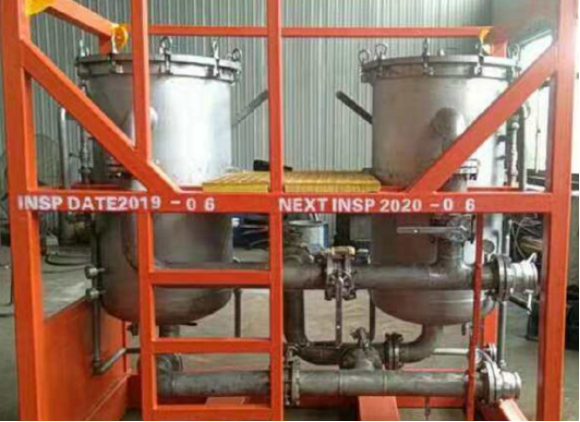

Dual Vessel Filtration Unit
- 25filter cartridge per pod EN65*2EA
- 304stainless steel vessel andpipe work
- 2x 2”pressure gauge
- Standard 1.5”drain port
- Design pressure 10Bar
- Design temperature 80oC
- Weight 1.5tons
- Demissions 3x1.4x2.1m
- Lifting frame and certified slings
Unit Price(usd)：：20,000.00.00

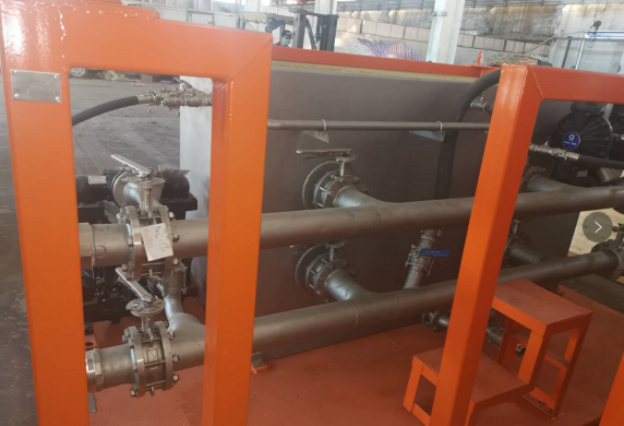

DE Slurry Mixing tank
- 304stainless tank and pipe work
- 4“inlet/outlet FIG206 WECOhammer union
- 3”equalizing manifold/drain
- Lifting frame and certified slings
- Dimension:3.3m x 1.65m x 1.8 m
- 1”Diaphragm pump charge pump
- Unit price(usd):23，000
Note: The above quotation only includes:
1 set of primary filter skid,
1 set of dual-cartridge secondary filter skid,
1 set of diatomaceous earth (DE) mixing system (including a DE feed GRACO diaphragm pump).
It does not include other optional accessories that your company may choose to reduce costs.
Additional items to be provided by the Buyer:
1 × 3" diaphragm pump for filter cake formation,
1 × 3" diaphragm pump for supplying brine from the brine tank to the primary filter (or an alternative pump type),
Sufficient 4" oil-resistant, pressure-resistant hoses and hose baskets for pipeline installation,
Turbidity meter,
Air compressor and compressed air supply lines,
Diatomaceous earth (DE),
Filter cartridges,
Etc.
2 .Other Equipment for options

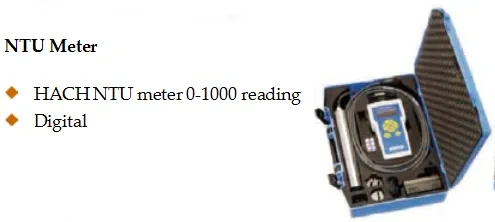

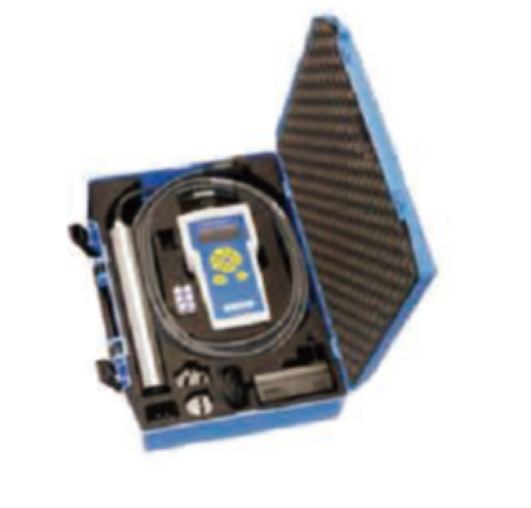

NTU Meter
- HACH NTU meter 0-1000 reading
- Digital

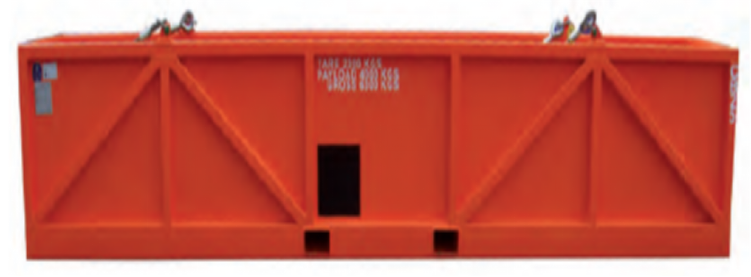

Hose basket
- 7x1.2x1.2m
- Weight: 6tons c/w certificated sling andforklift channel
- Water drain port
Hoses
- 4”oil resisted hoses rated 150 psi , c/w 4“inlet/outlet FIG206 WECO hammer union
- 6m&3m sufficientfor 2 year operation
- Secured with whip checks
