| Model | Bowl dia(mm) | Bowl length(mm) | Max RPM(r/min) | Length vs Dia | G force | capaticy(m3/h) | Main motor (kw) |
max solids unload capacity(m3/h) | Gross weight(kg) | Dimension(mm) |
| H400x860 | 400 | 860 | 3200 | 2.2 | 2294 | 8 | 15 | 1 | 1600 | 2270*1480*980 |
H400x1200 |
400 | 1200 | 3200 | 3 | 2294 | 12 | 18.5 | 1.5 | 1800 | 2730*1600*1080 |
H400x1600 |
600 | 1600 | 3000 | 4 | 2016 | 3-15 | 22 | 2 | 2000 | 3130*1600*1080 |

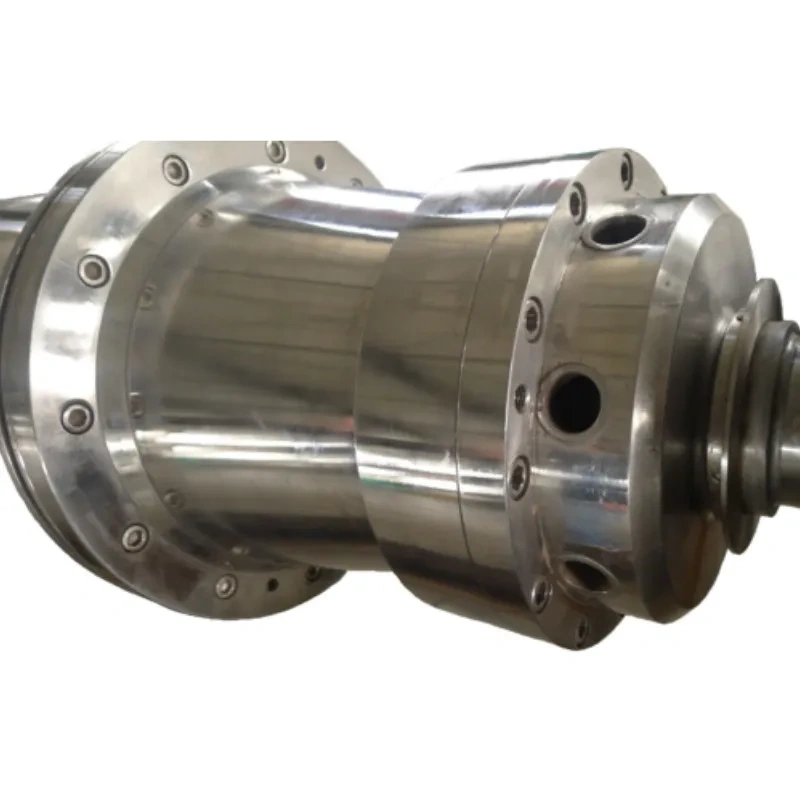

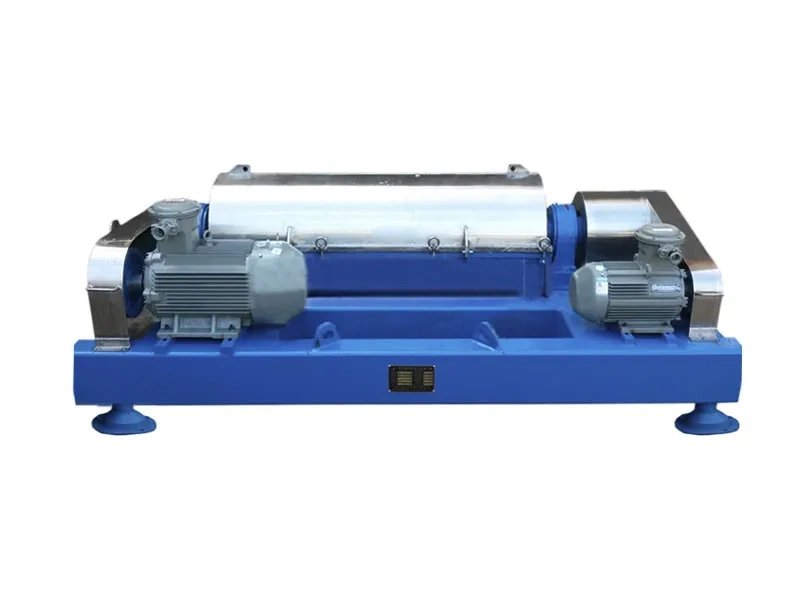

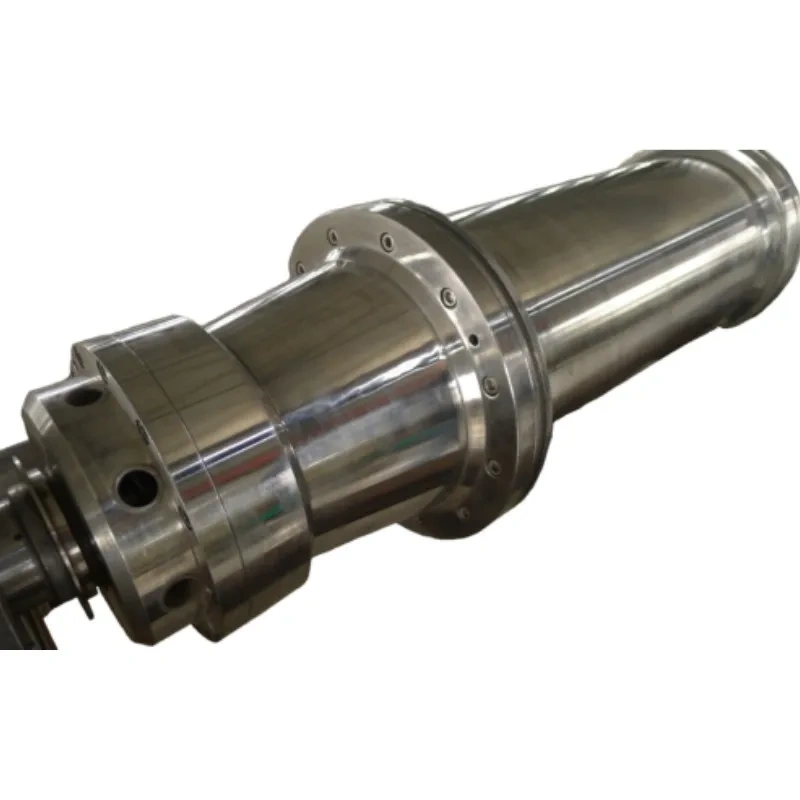

The H400(16") horizontal spiral decanter centrifuge has a wide range of applications in the petroleum and coal industry. Below is information about the product material, standard configuration, color variety and optional configuration:
**App collar
Product Material: The contact parts of the product are manufactured from a variety of corrosion-resistant materials, including:
l Austenitic stainless steels (such as 304, 316, 321L, etc.)
l Duplex stainless steel (2205, 2304, 2507)
l Hastelloy
l Titanium alloy
l Other anti-corrosion materials
**Standard Configuration:
l Ordinary motor
l Standard control cabinet
**Color Type:
Optional configurations: The appliance also offers a range of optional configurations, including:
l Explosion-proof motor: suitable for places with flammable and explosive gas environment.
l Power supply voltage: It can be adjusted according to the voltage standards of different regions.
l Frequency converters ABB/Siemens: Frequency converters are used to adjust the speed of equipment to meet different process requirements and material characteristics.
In summary, the H355 horizontal spiral decanter centrifuge is widely used in the oil and coal industry, offering a variety of materials, standards and optional configurations to meet the needs of different industries and customers.
