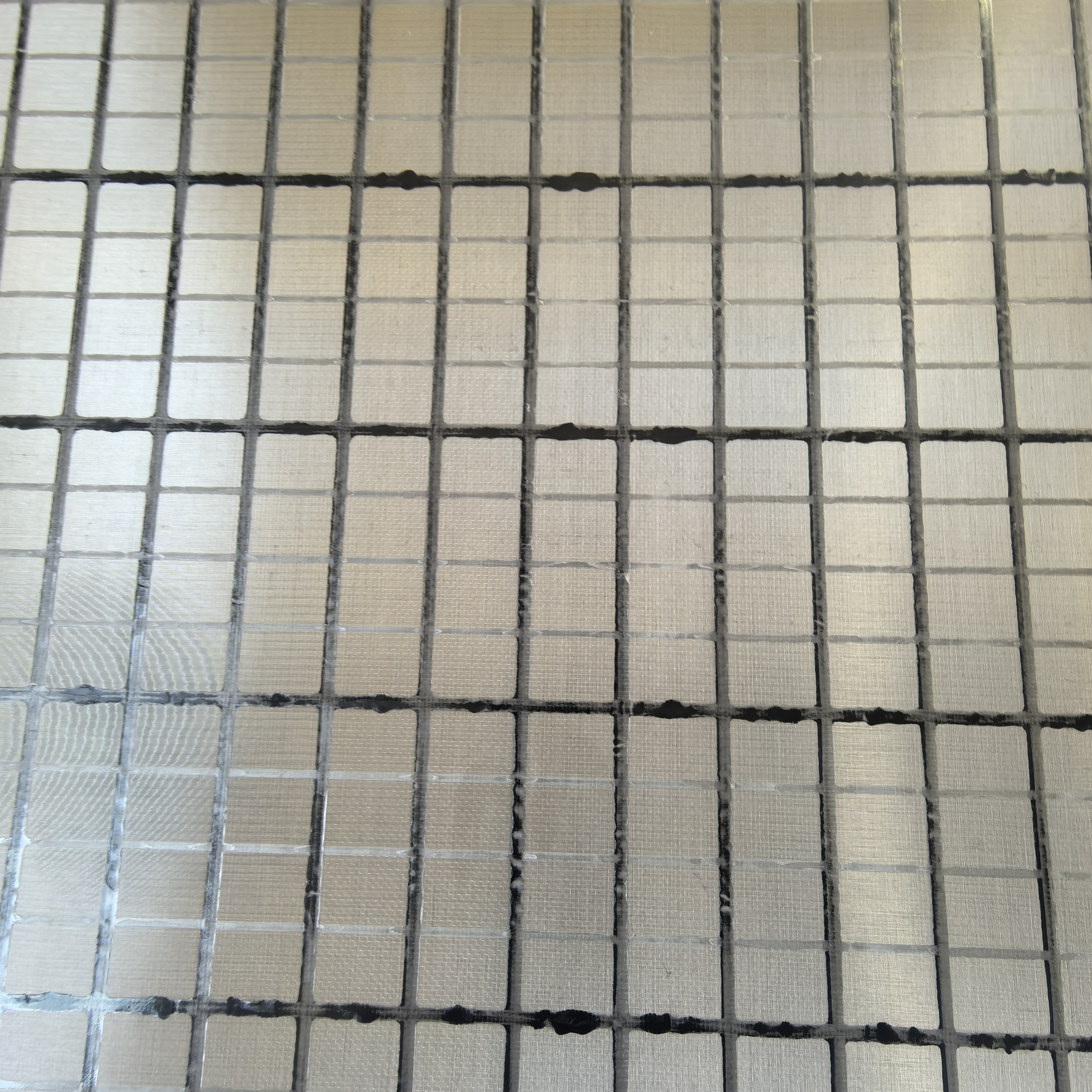

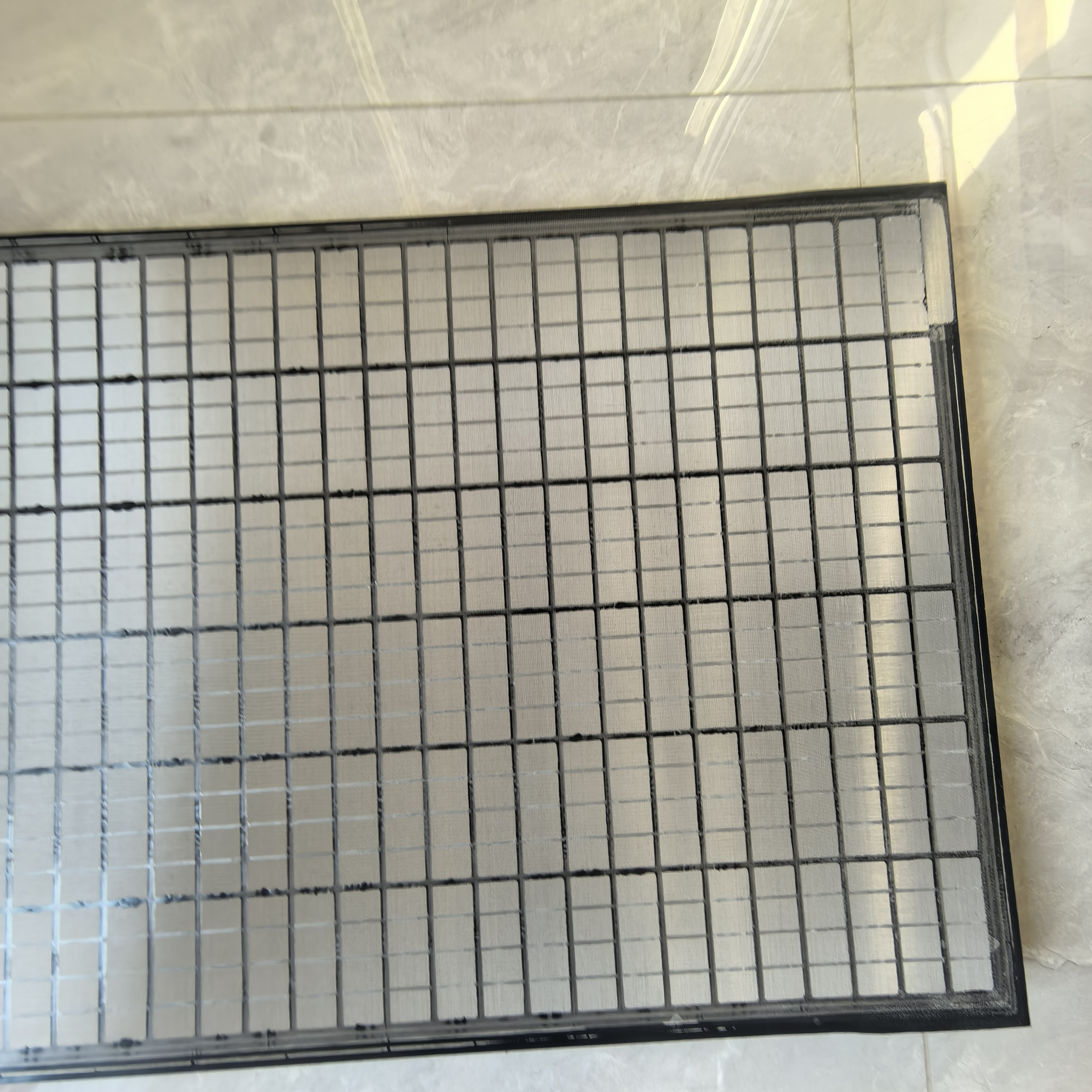

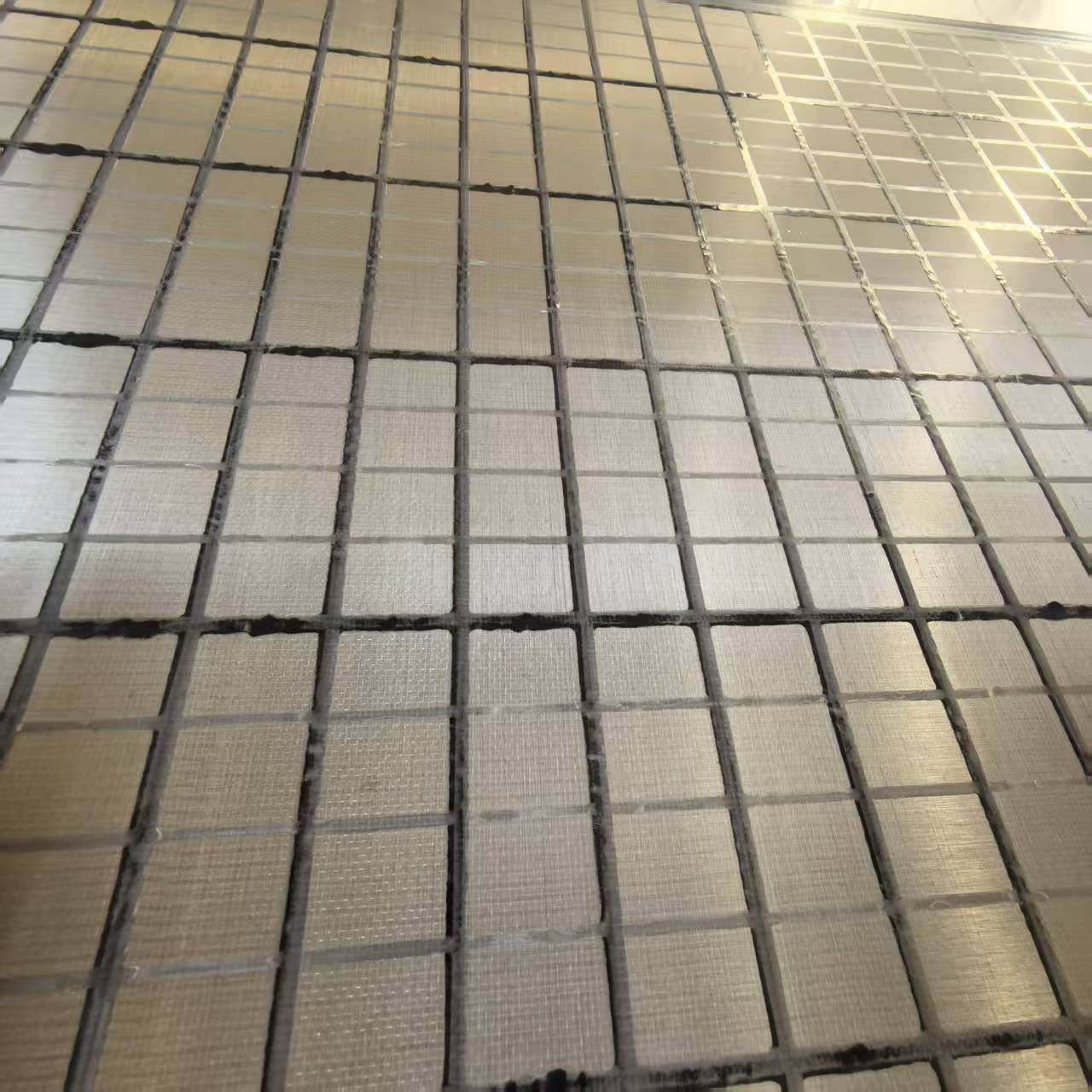

We have further innovated on the original mongoose composite screen by dividing the previous large rectangular grids into three smaller grids using a special material. This enhancement ensures more uniform force distribution across the wire cloth per unit area, significantly extending the product's service life.
Key improvements:
The upgraded design particularly benefits high-volume operations where consistent performance under continuous load is critical. This represents our third-generation screen technology, building upon fifteen years of industrial screening expertise.
Our Composite Frame Shaker Screens incorporate a proprietary Pre-Tensioned Mesh System, where precise tension is pre-applied to the screen surface during manufacturing. This innovation fundamentally enhances performance and longevity compared to conventional screens. Below is a detailed technical explanation:
Precise Tension Control:
During production, the mesh is mechanically stretched and locked into the composite frame under 25–35 kN/m² of tension (adjustable per material and mesh count). This eliminates "slack zones" that cause premature wear in traditional screens.
Tension uniformity is maintained within ±5% across the entire mesh area via laser-guided alignment.
Dynamic Stress Distribution:
The composite frame’s carbon fiber-reinforced polyurethane structure (elastic modulus: 3.5 GPa) absorbs vibration energy, reducing peak stress on the mesh by 30–40%.
Finite element analysis (FEA) confirms a 15% lower maximum principal stress compared to steel-frame screens under identical loads.
Extended Service Life:
Enhanced Screening Efficiency:
Pre-tensioning minimizes "blinding" (mesh clogging), improving throughput by 8–12% for fine particles (<75 μm).
Consistent aperture geometry ensures ±2% size classification accuracy.
XR,XL mesh , orange ,black color optional
Product Details
Enhanced Composite Design for Longer Service Life

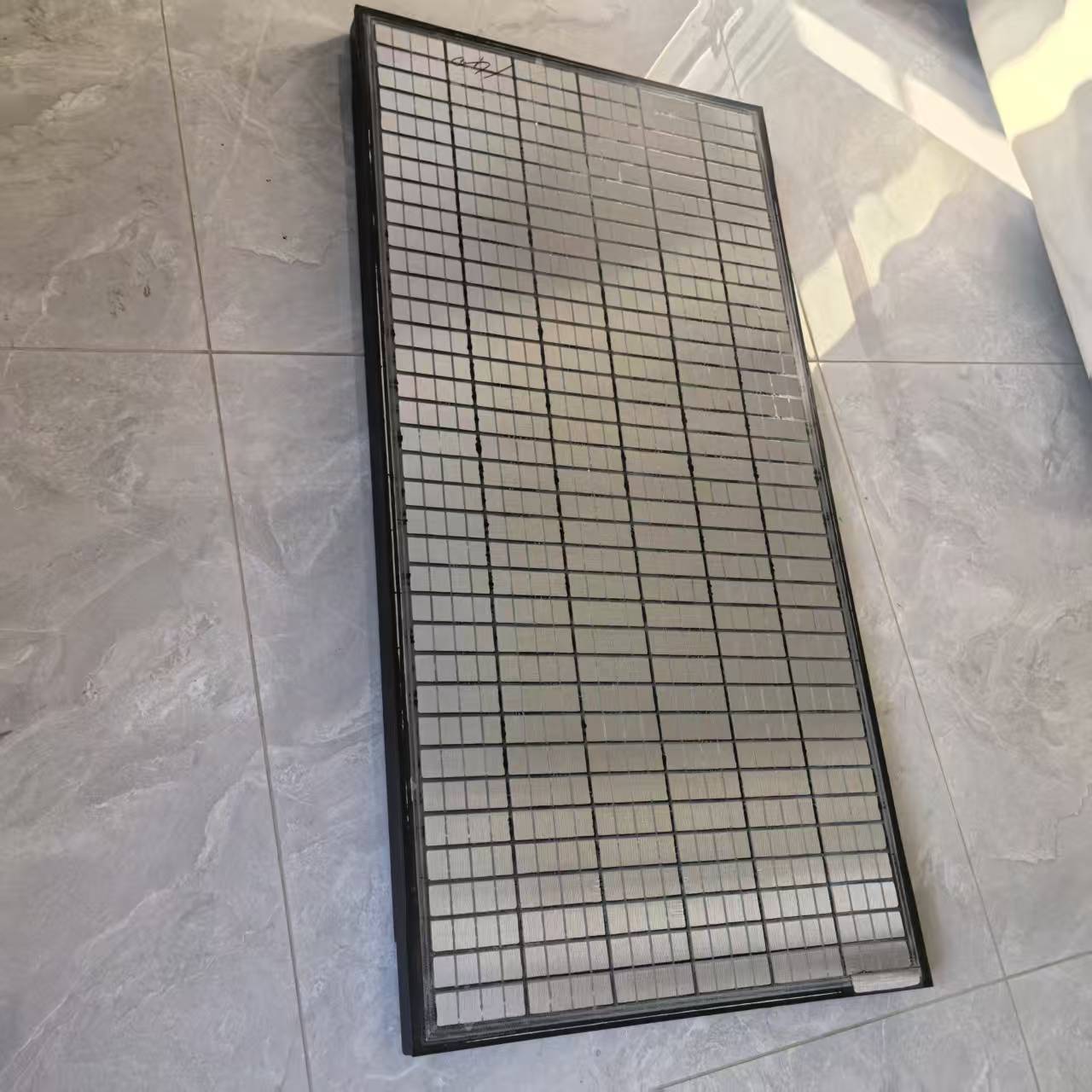

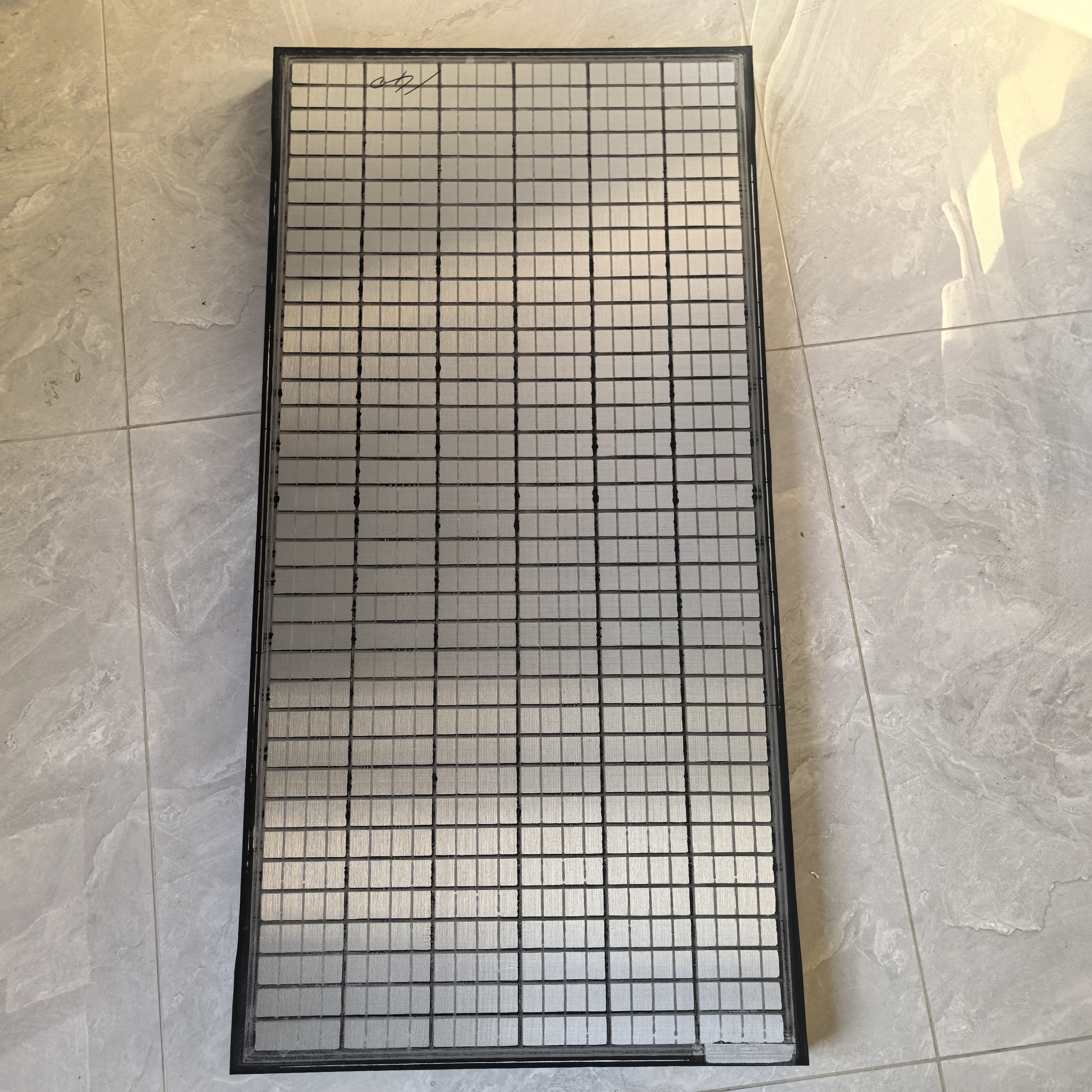

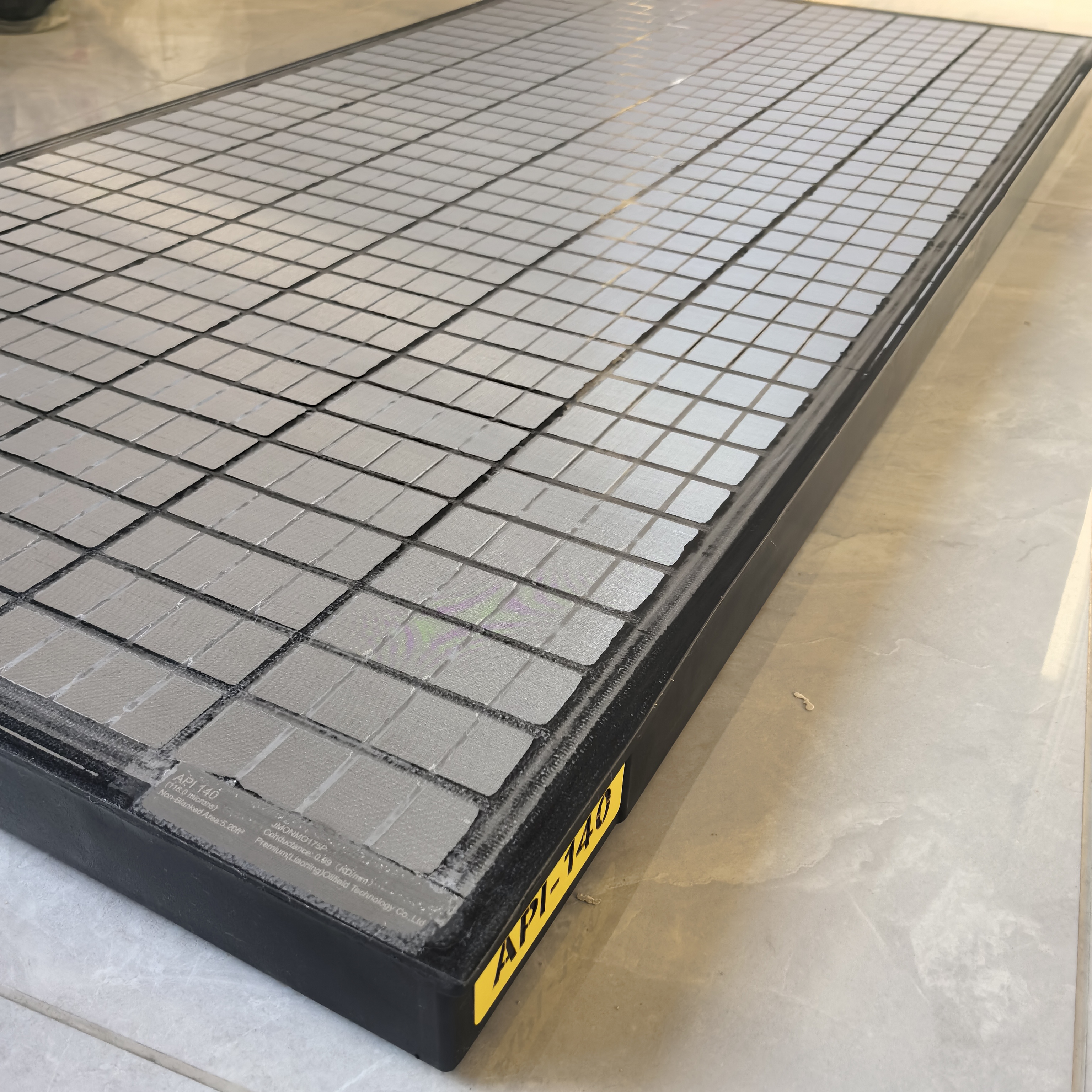

The Mongoose composite replacement shaker screen features an advanced tri-grid structure that partitions a large mesh area into three optimized sub-grids, ensuring more uniform force distribution per unit area and significantly enhancing durability. This structural innovation delivers approximately 25% more uniform stress distribution and up to 40% longer service life compared to traditional screens, while preserving original screening efficiency. As a superior shaker screen, it is designed to meet the demands of high-volume solids control operations with dependable performance.
Pre-Tensioned Mesh System for Superior Screening Accuracy
The proprietary pre-tensioned mesh system in the replacement shaker screen mechanically applies precise tension (25–35 kN/m²) to the mesh during production, locking it into the composite frame with ±5% uniformity via laser-guided alignment. This technology eliminates slack zones that cause premature wear and ensures consistent aperture geometry. The result is improved throughput—an 8–12% gain for fine particles—and 30% lower replacement frequency through reduced mesh sagging and edge tearing.
Optimized for Efficiency and Minimal Downtime

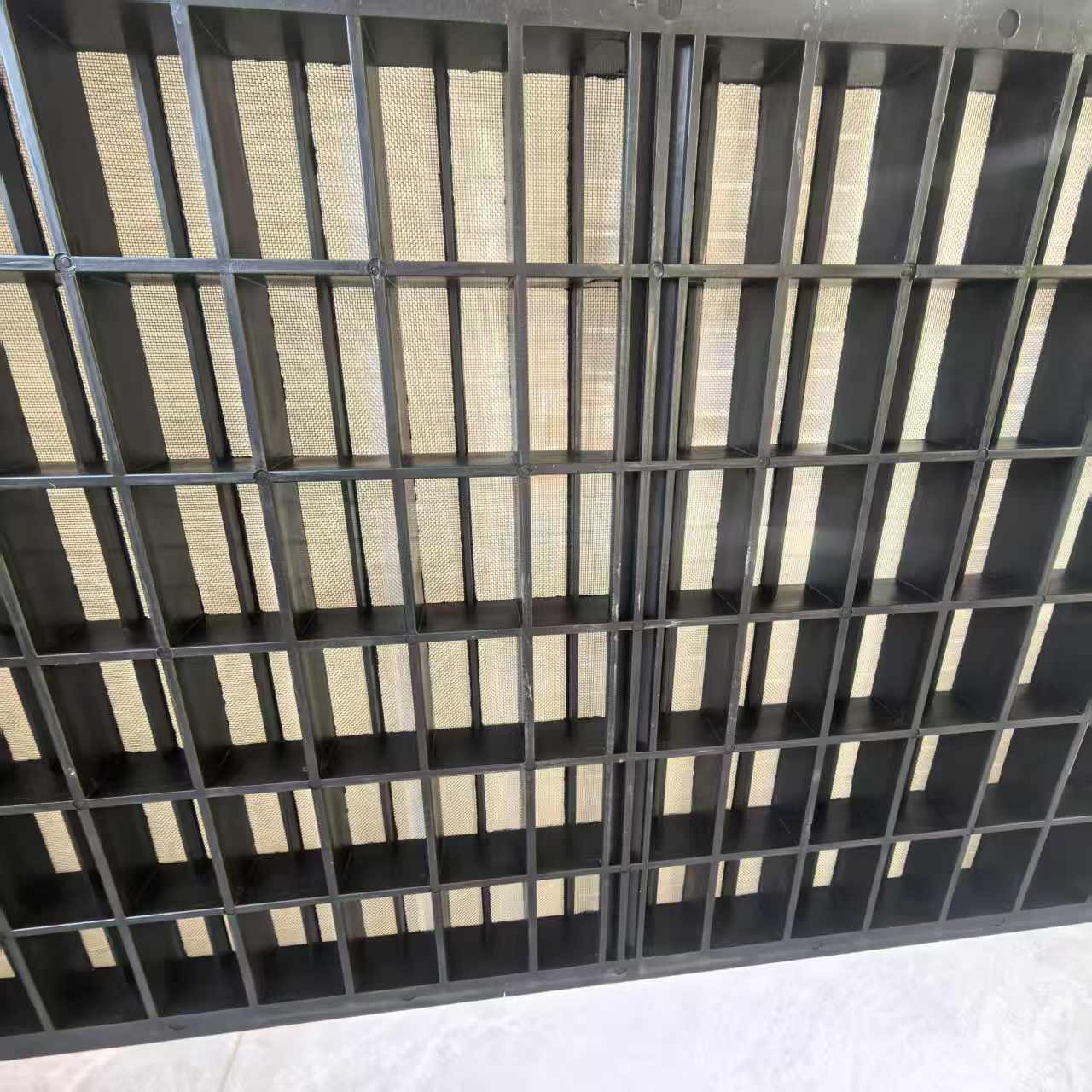

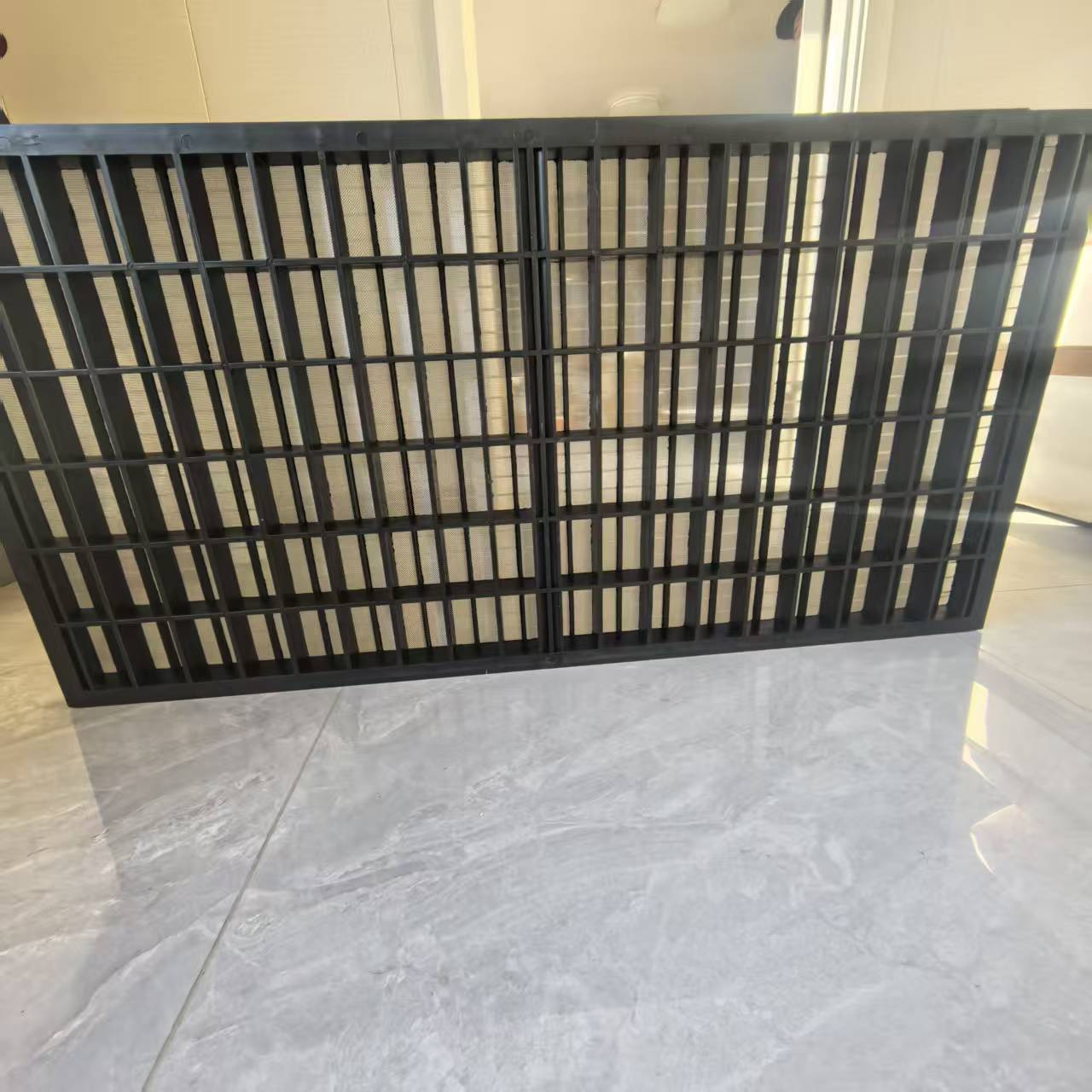

Constructed with a carbon fiber-reinforced polyurethane frame (3.5 GPa elastic modulus), the shaker screen absorbs vibration energy and reduces peak stress on the mesh by 30–40%. Finite element analysis confirms it endures 15% lower maximum principal stress than comparable steel-frame screens. Its durability under sustained load conditions makes it a high-performance replacement shaker screen that supports continuous operation, minimizes downtime, and enhances solids control system reliability.
Product Advantages
Extended Lifespan Fueling Lower Operating Costs
This shaker screen uses a tri-grid composite frame and proprietary materials to increase operational longevity. Customers benefit from up to 40% extended screen life and 30% fewer replacements compared to standard designs, reducing maintenance intervals, handling time, and cost—especially valuable in high-throughput drilling operations.
Higher Screening Precision and Throughput
Thanks to the pre-tensioned mesh system, the replacement shaker screen delivers enhanced accuracy in particle separation and improved throughput, particularly for fine solids (increasing throughput by 8–12%). Aperture stability (±2% size consistency) ensures reliable classification and cleaner drilling fluids, boosting downstream equipment protection and operational efficiency.
Structural Resilience Under Load
Built with a carbon fiber-reinforced polyurethane frame, the shaker screen significantly attenuates vibration stress—absorbing 30–40% of vibration energy and experiencing 15% lower peak stress compared to steel frames. This resilience supports performance during continuous, high-intensity operations and strengthens return on investment through reduced screen failure and downtime.
