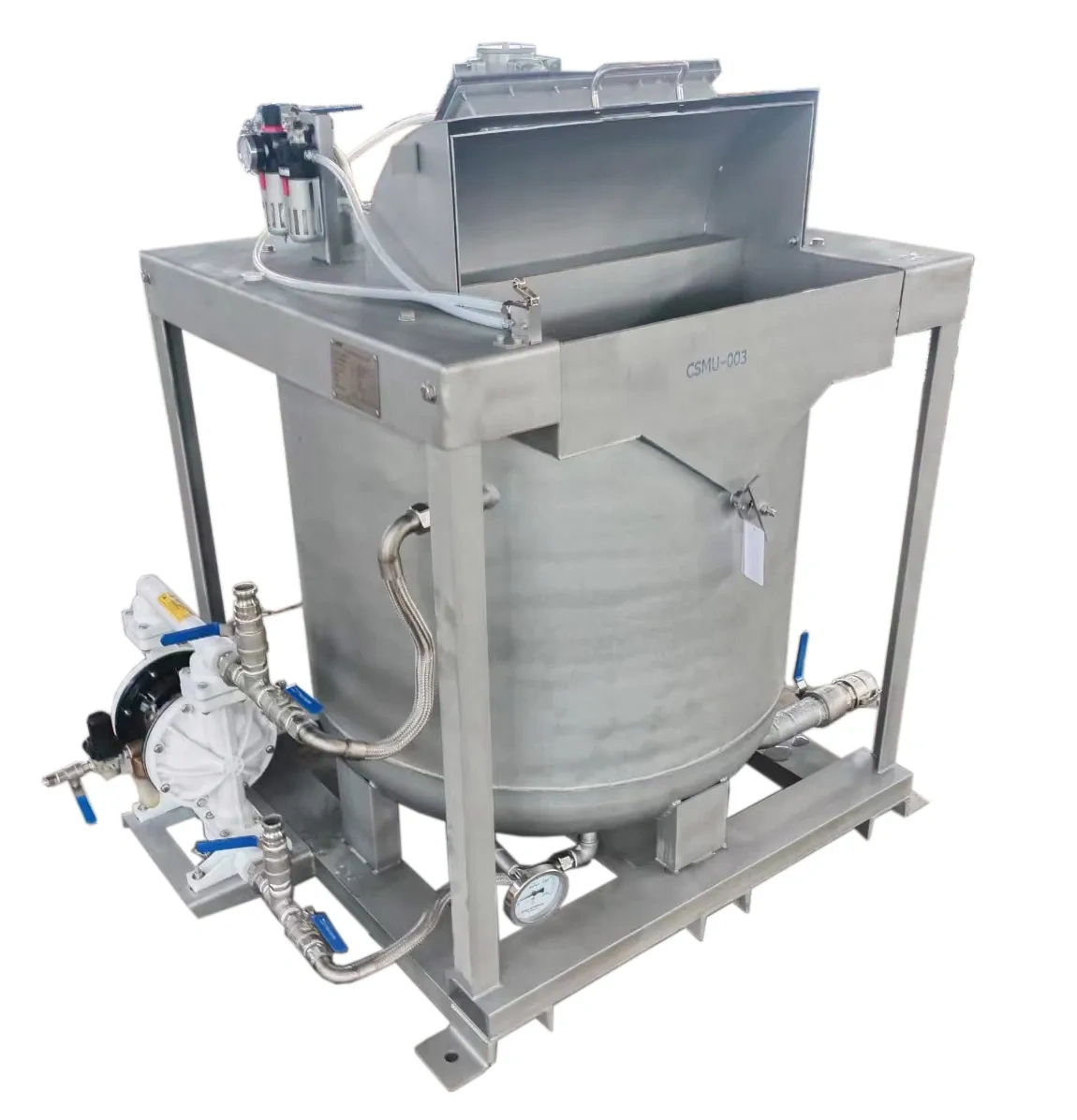

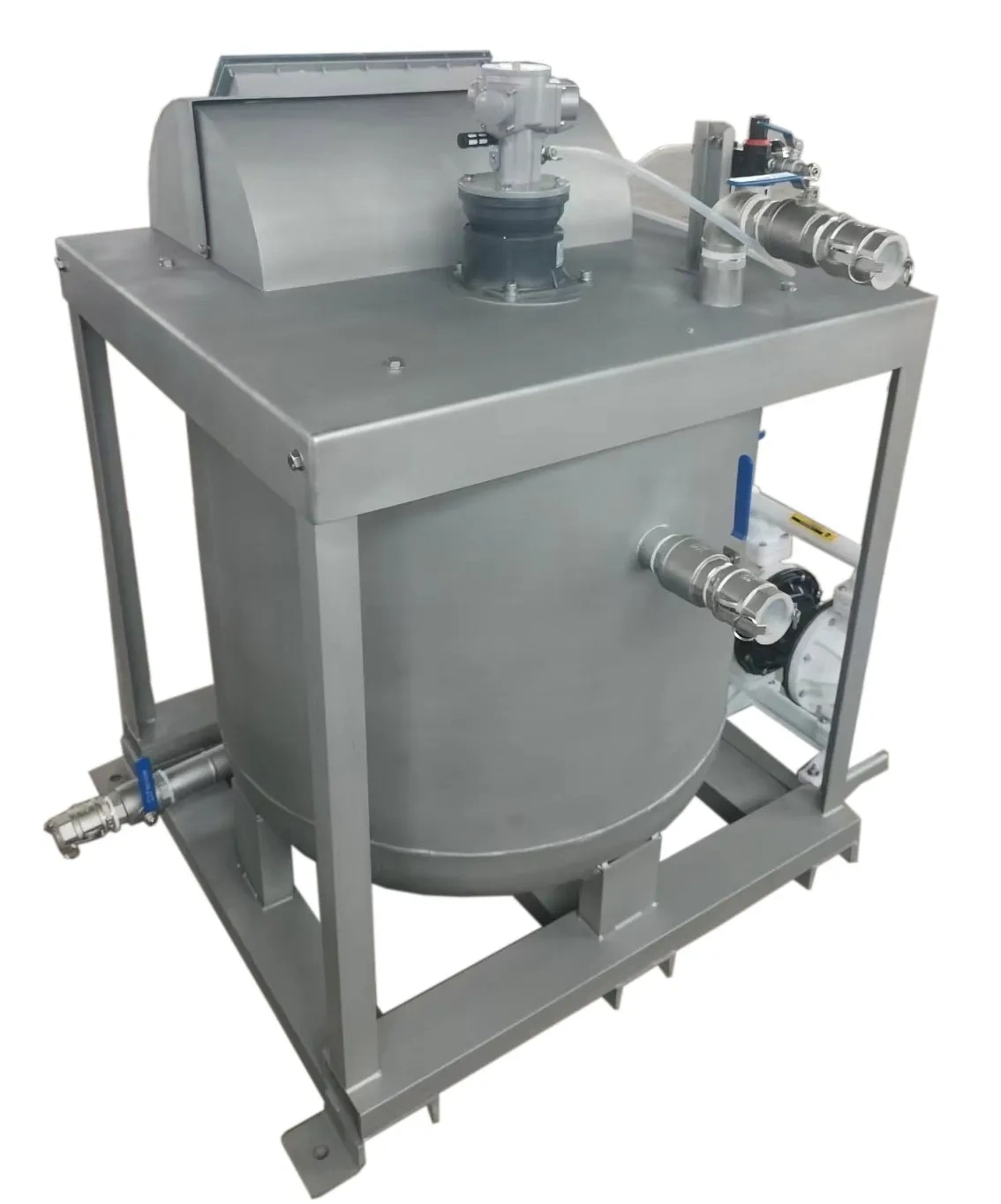

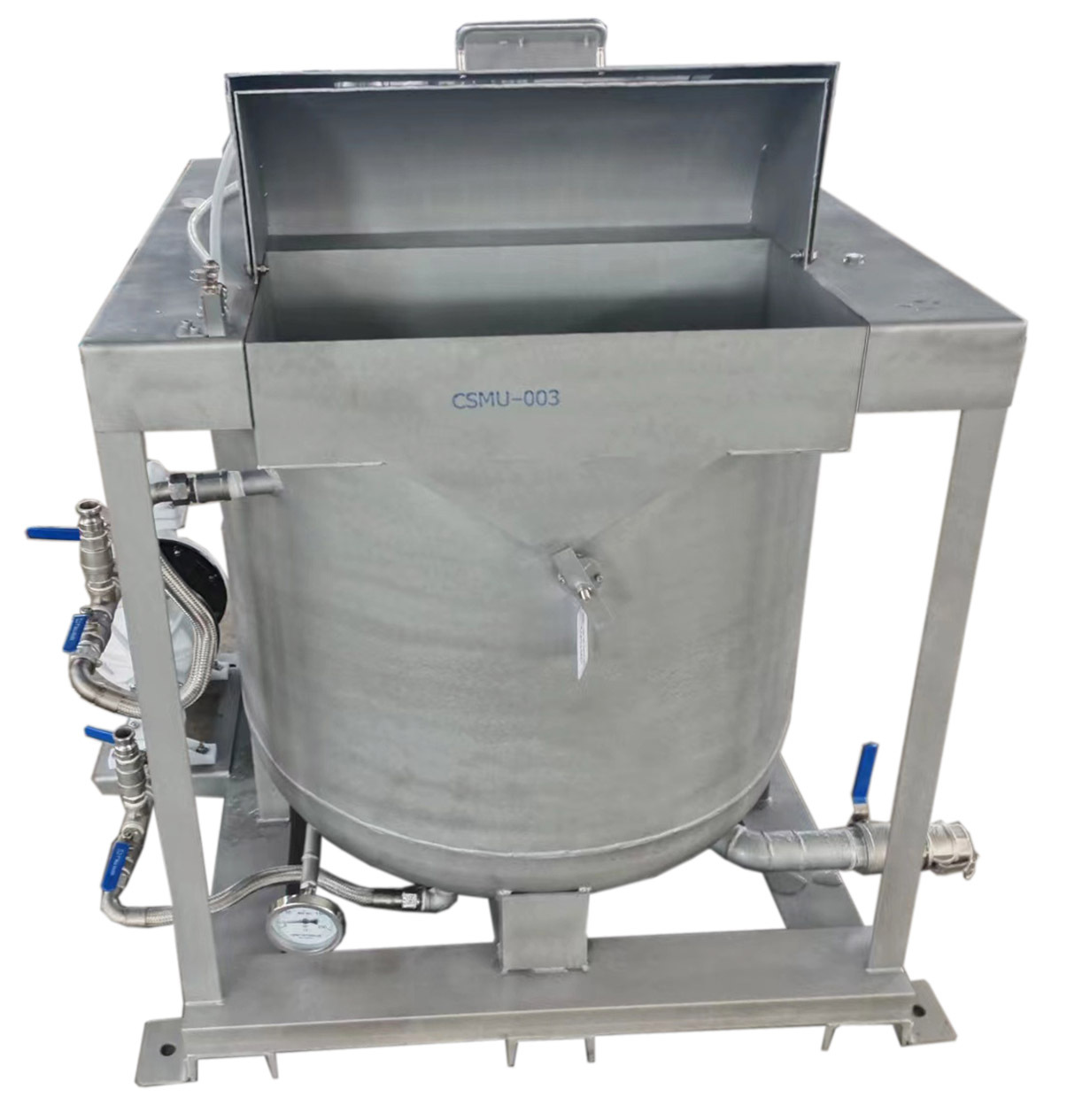

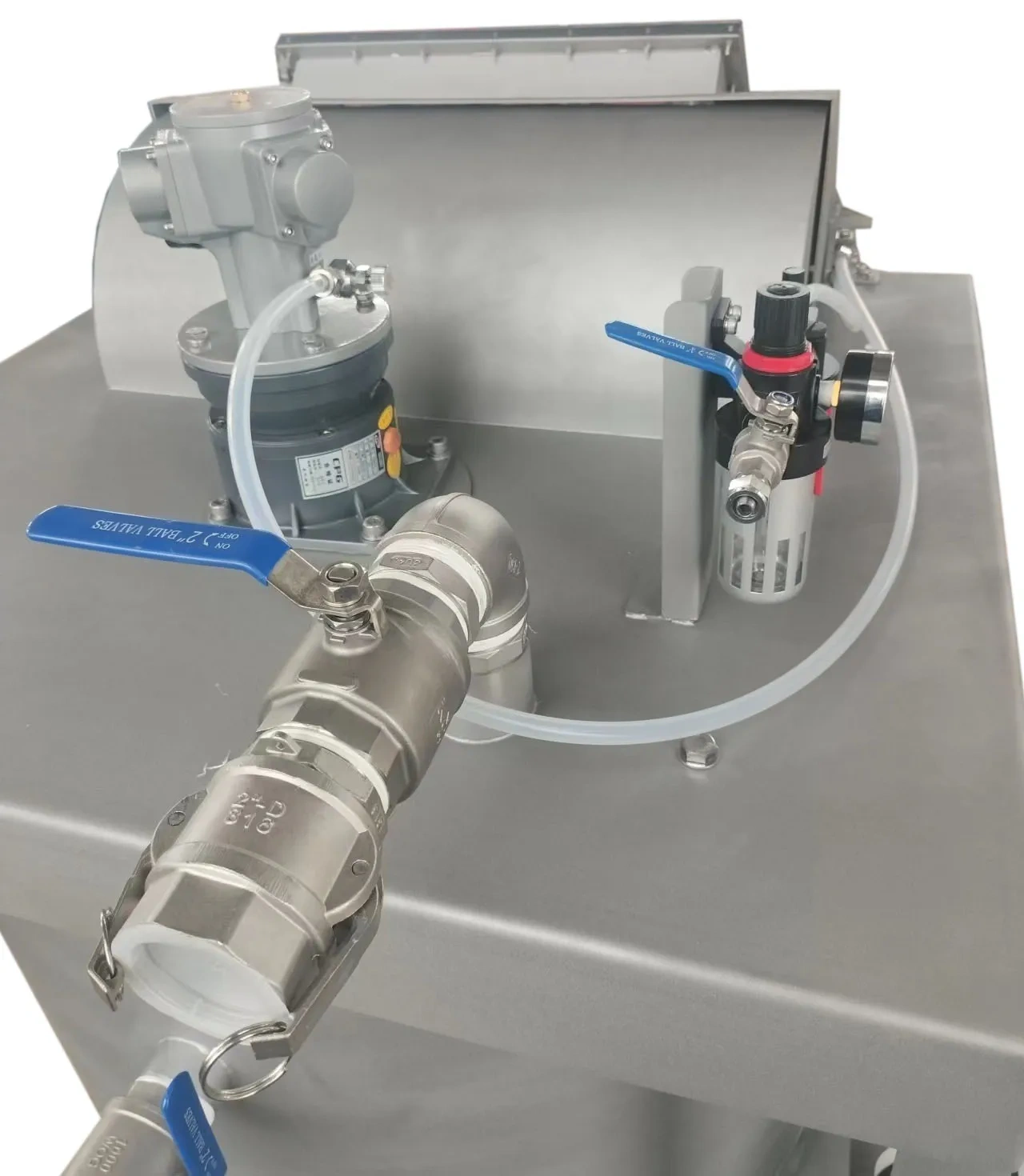

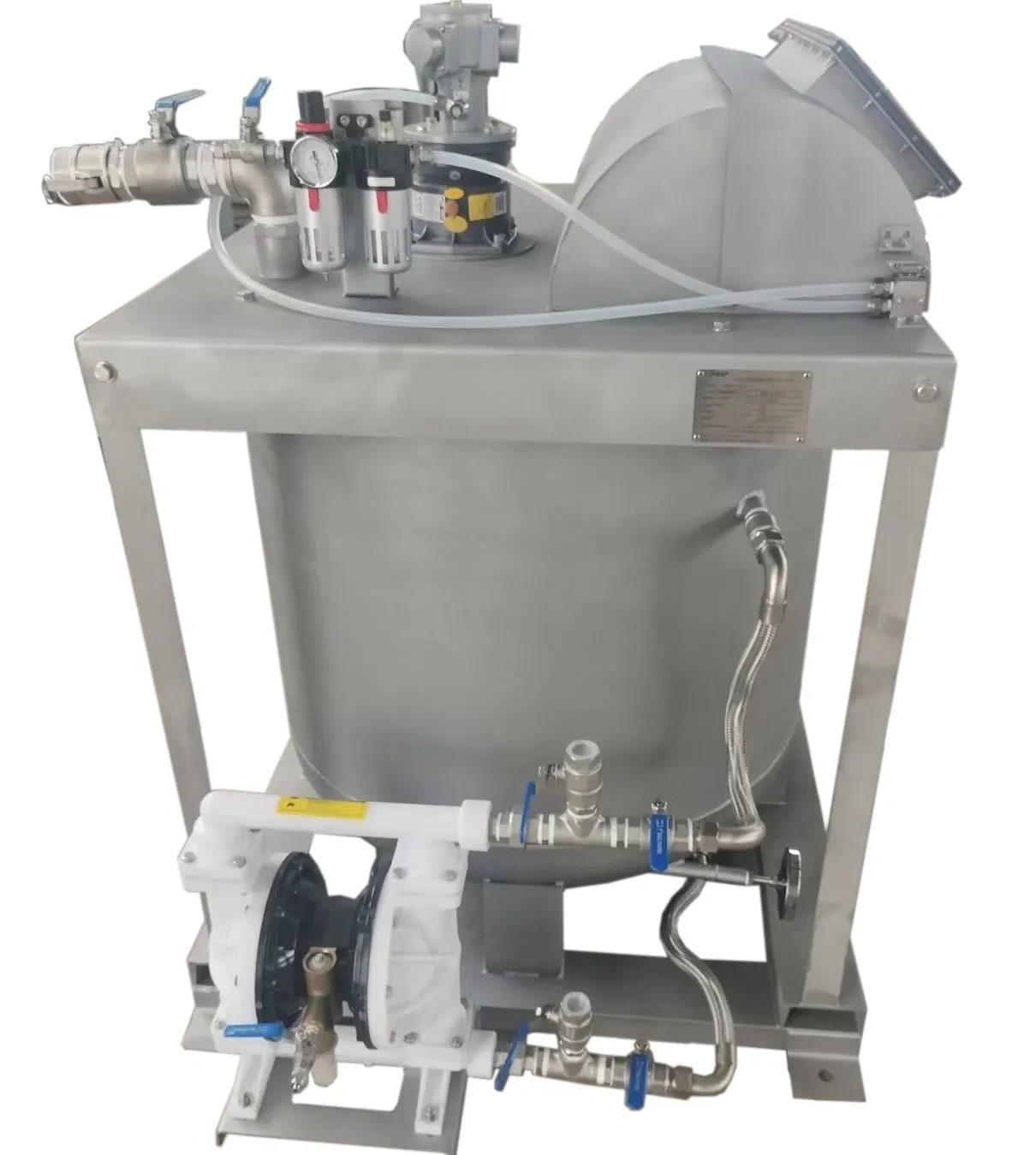

Model : CSMU-003 Pneumatic motor c/w reducer as agitator power, additionally installed Pneumatic pump to help pumping fluids to where user want to go, also this pump has a suction line to collect fluid from a pail or drum to the soda ash tank for mixing.
Pneumatic capacity:5 m3/hour
agitating motor :0.33KW, small air requirment
reducer ratio:5:1
rpm: 180 rpm.

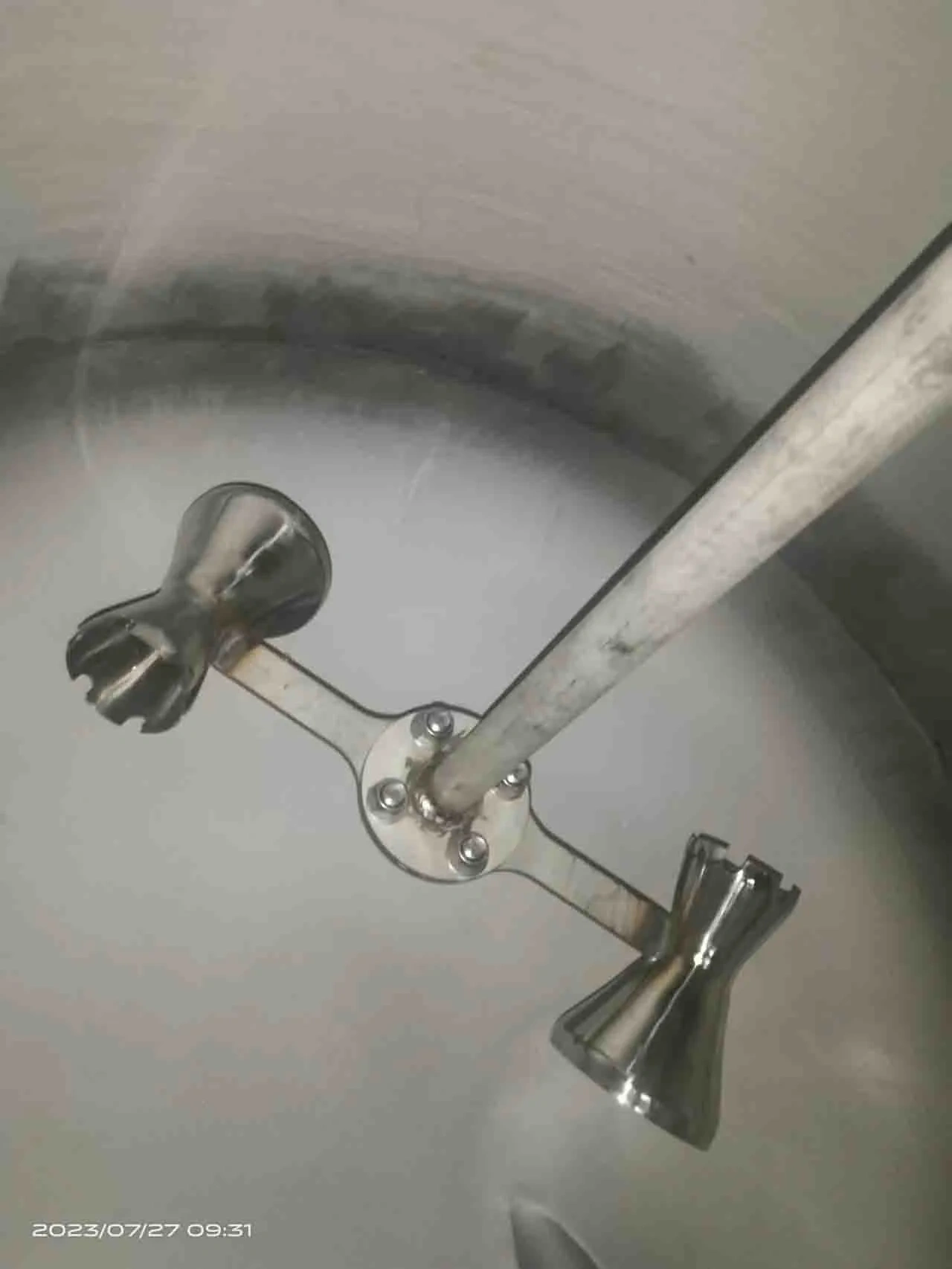

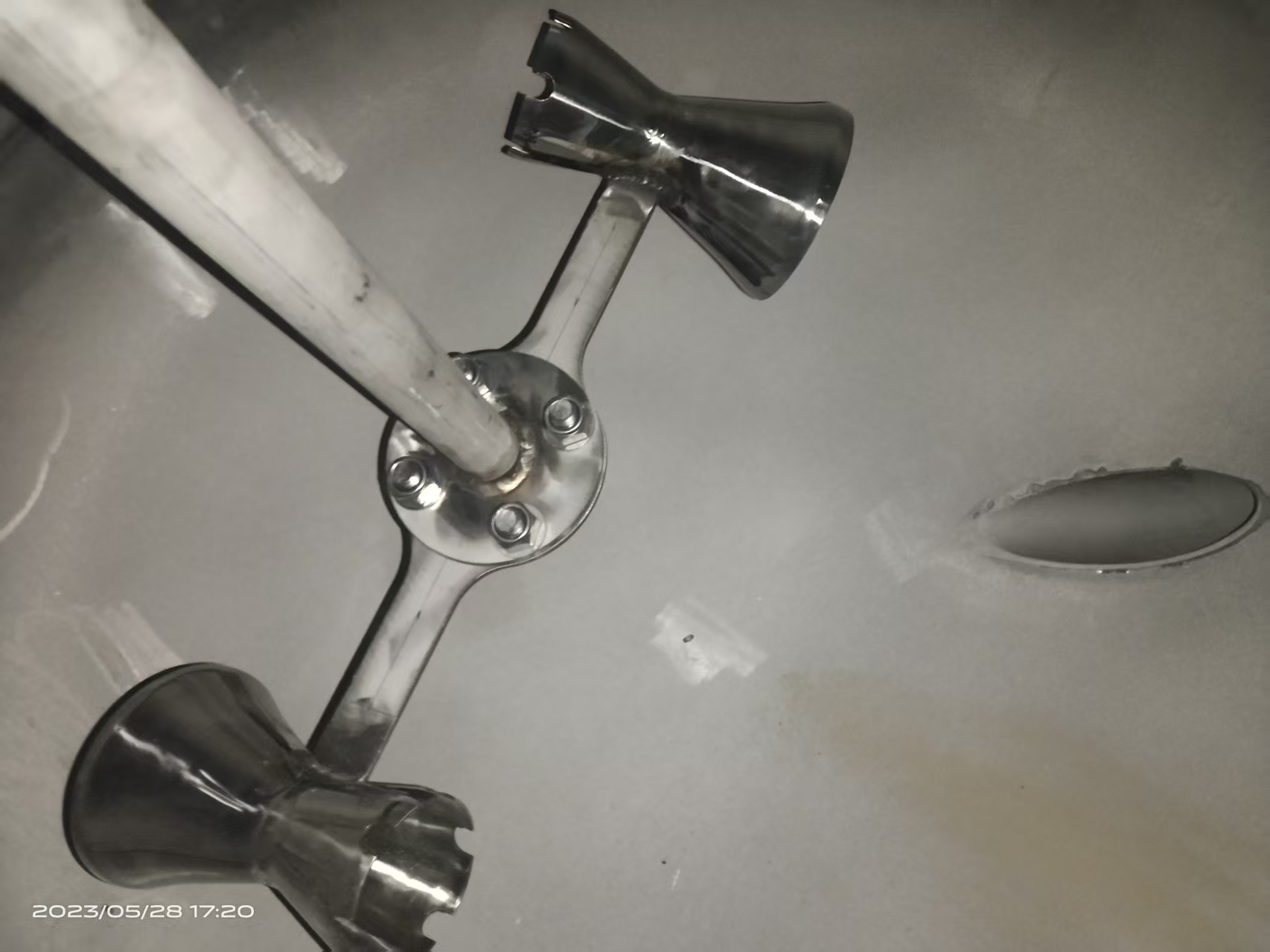

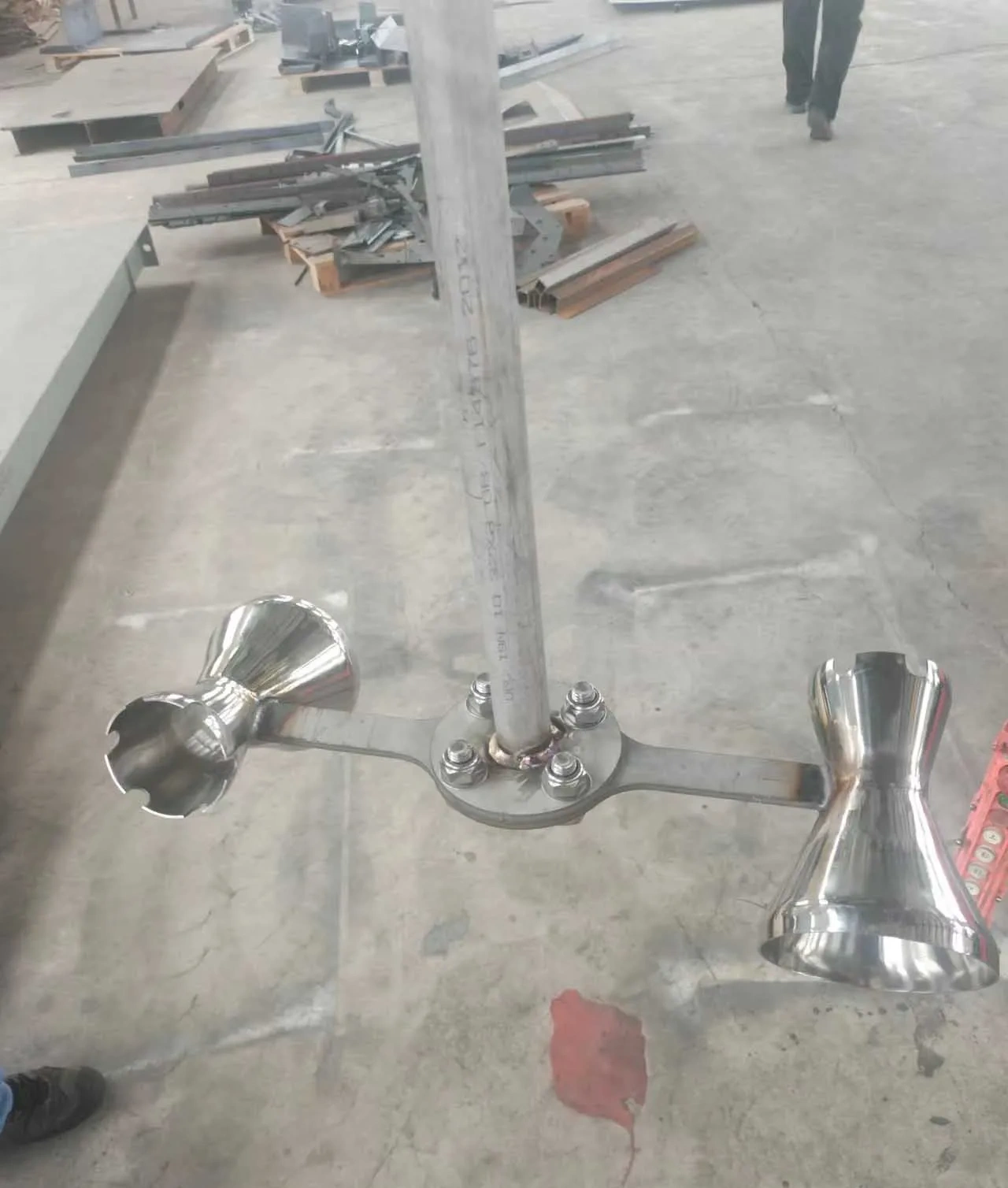

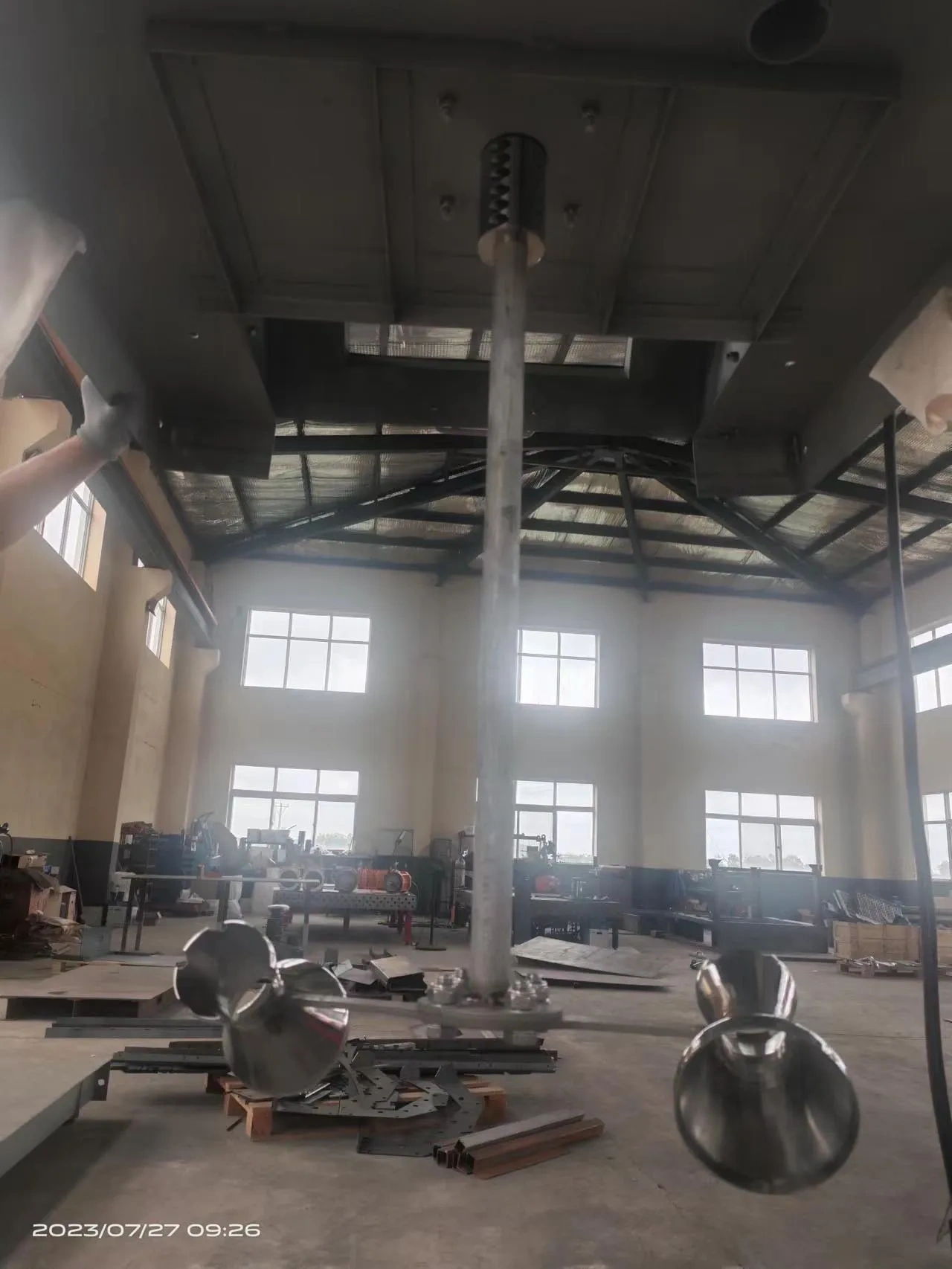

advanced agitator blade, smooth stream.

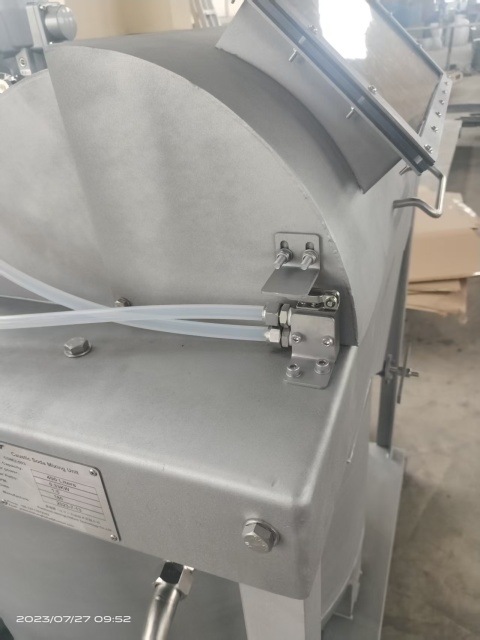

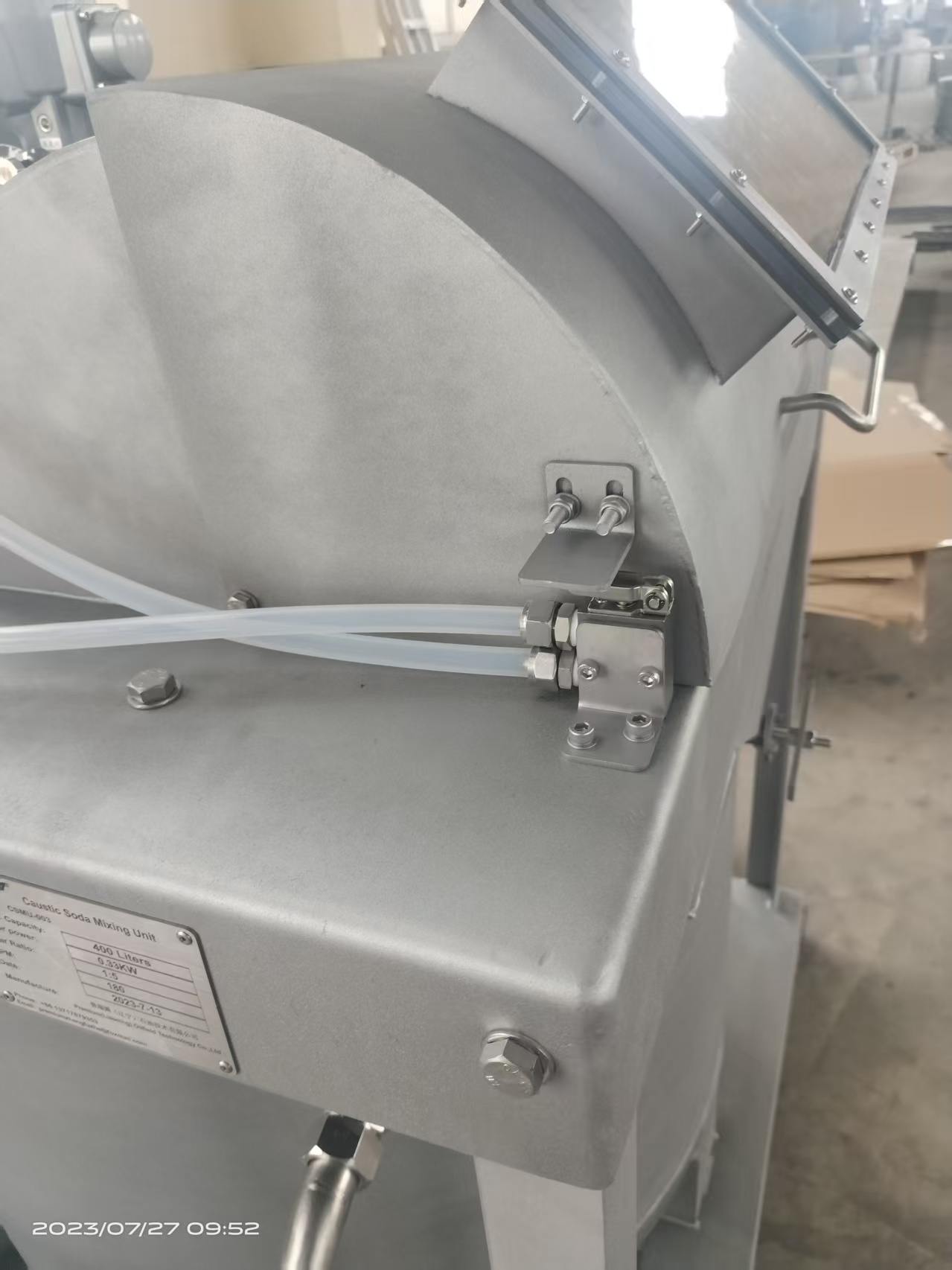

safety air shuttle valve , only allow the agitator rotate when the protection lid closed.
View glasses and rubber seal are all Telfon material , long life and anti-corrosion.
