Replacement Screen
Maximized Efficiency, Extended Durability
Intertek | API RP 13C Certified
Core Advantages
🔥 Highest Non-Blank Area in Class
Optimized mesh geometry delivers ≥92% effective screening area – 18% higher than standard screens – for rapid fluid recovery with minimal product loss.
🌊 High-Conductance Design
Engineered flow channels achieve 2.1x kD-value over conventional screens, preventing fluid bypass even in high-density mud applications.
🛡️ 2X Longer Service Life
Laser-fused edge reinforcement and anti-fatigue wire technology withstand 1,200+ hours of continuous operation in abrasive environments.
Proven Reliability
Why It Matters for Your Operation
"Higher non-blank area = Faster processing + Less wasted fluid"
"Extended lifespan cuts screen replacement costs by 40% annually"

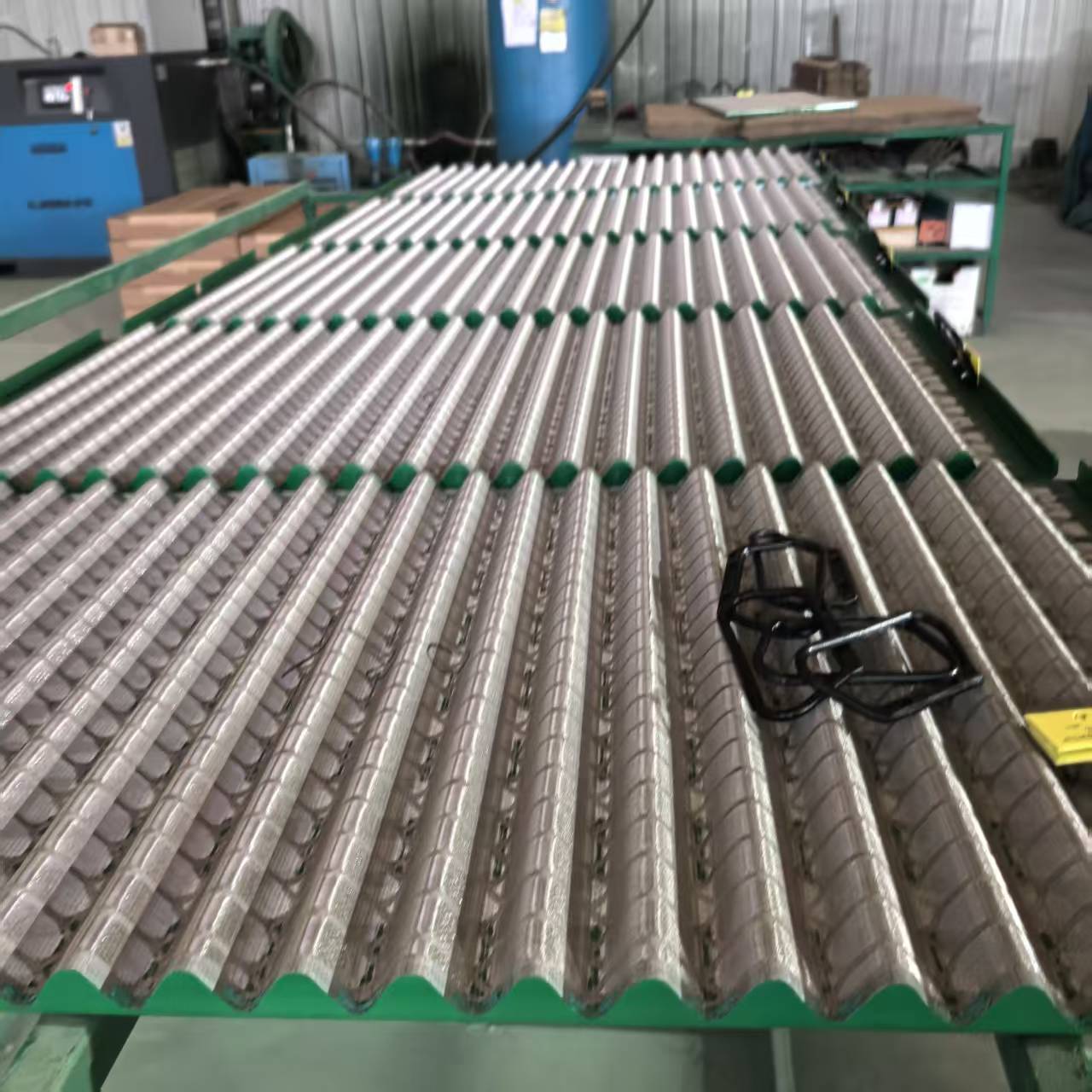

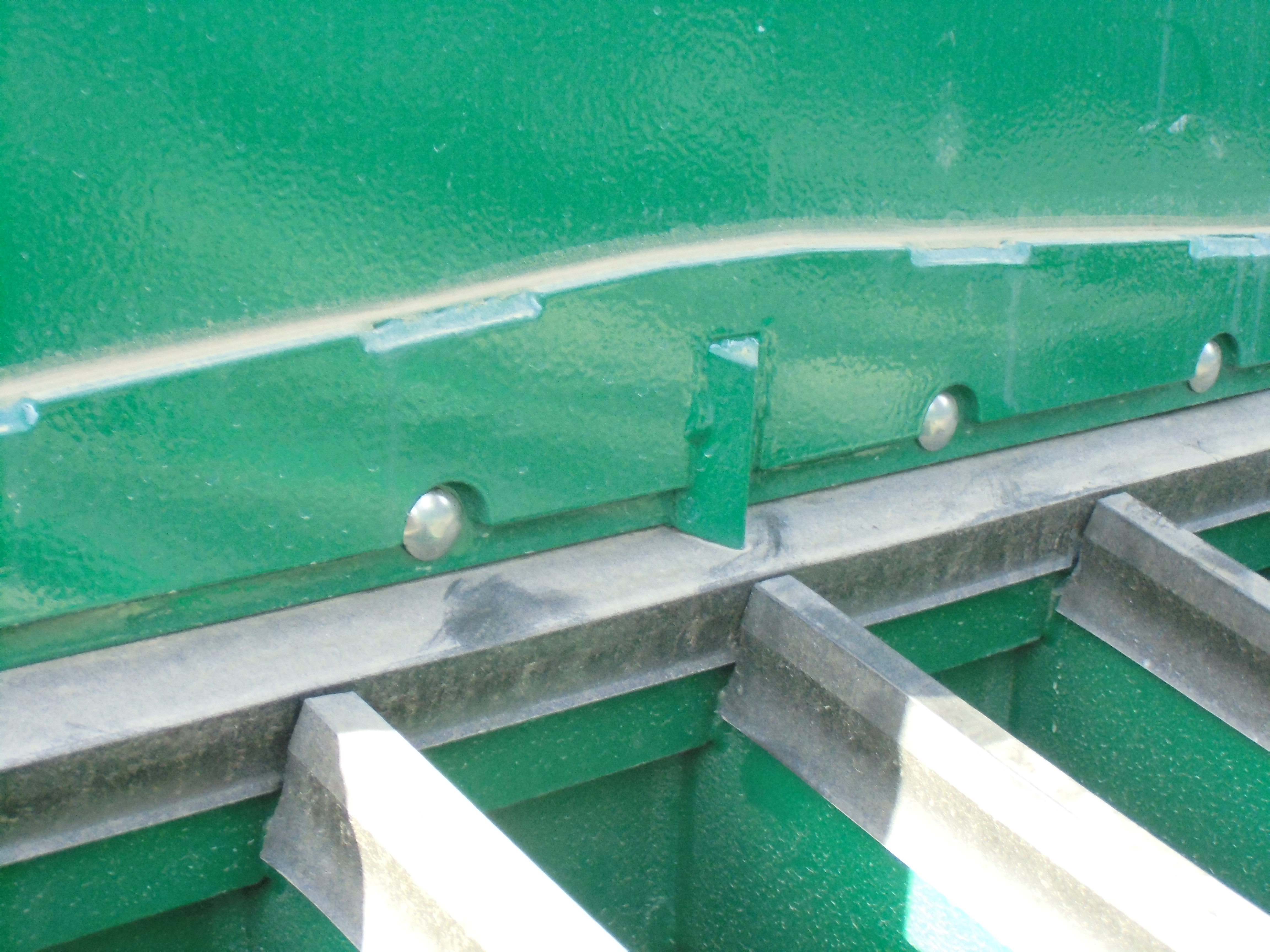

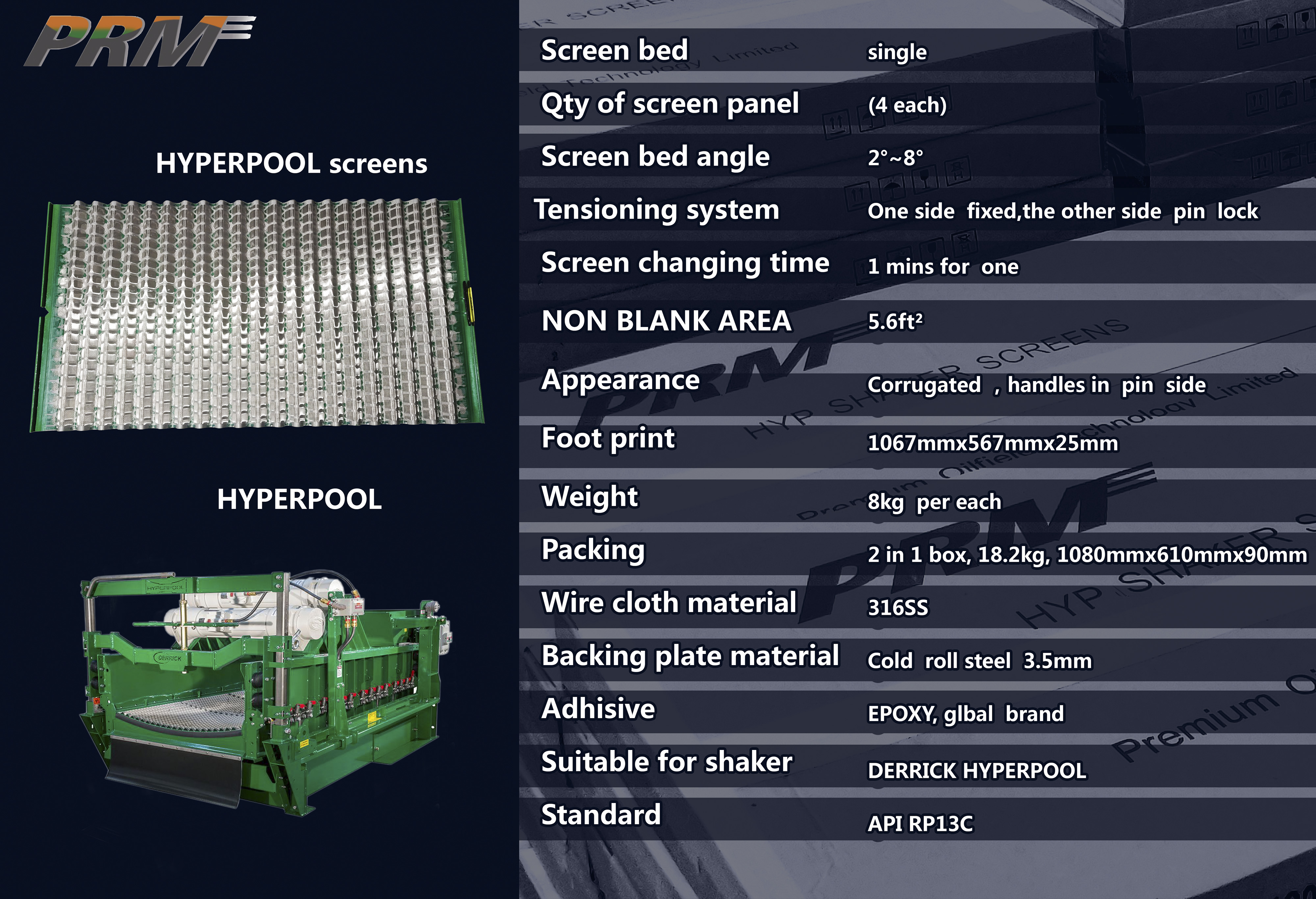

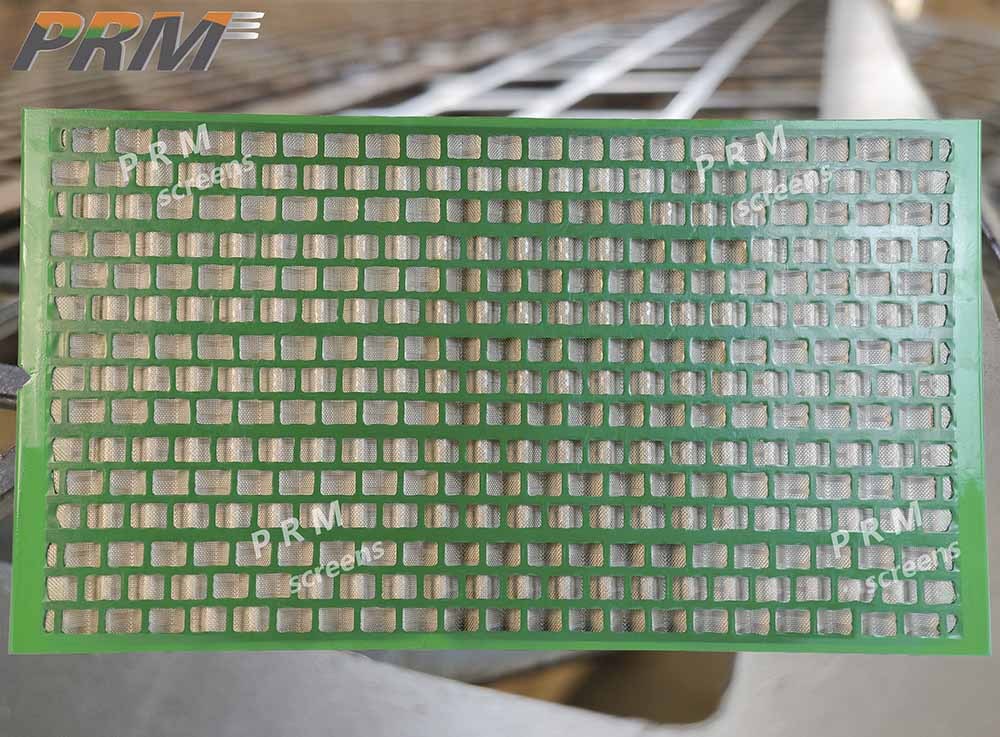

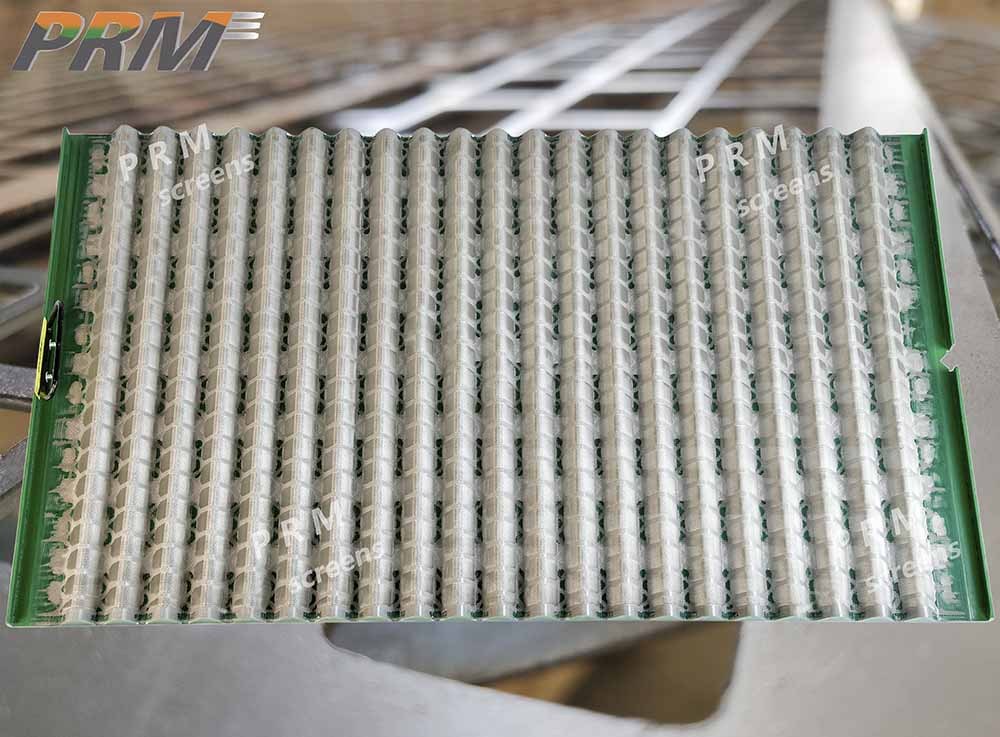

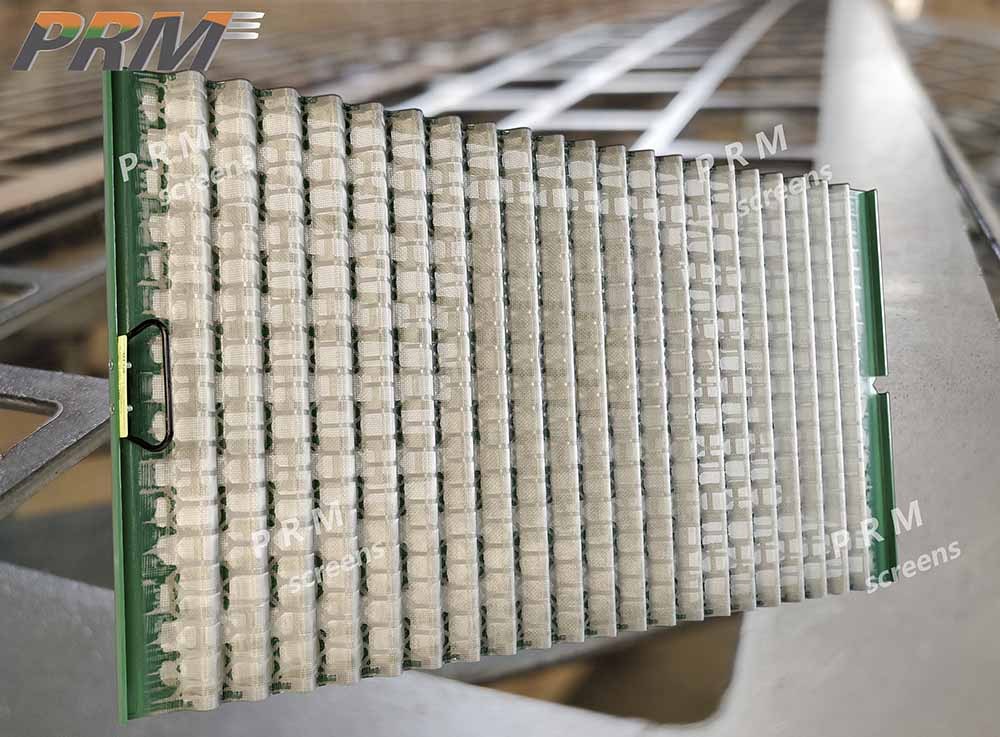

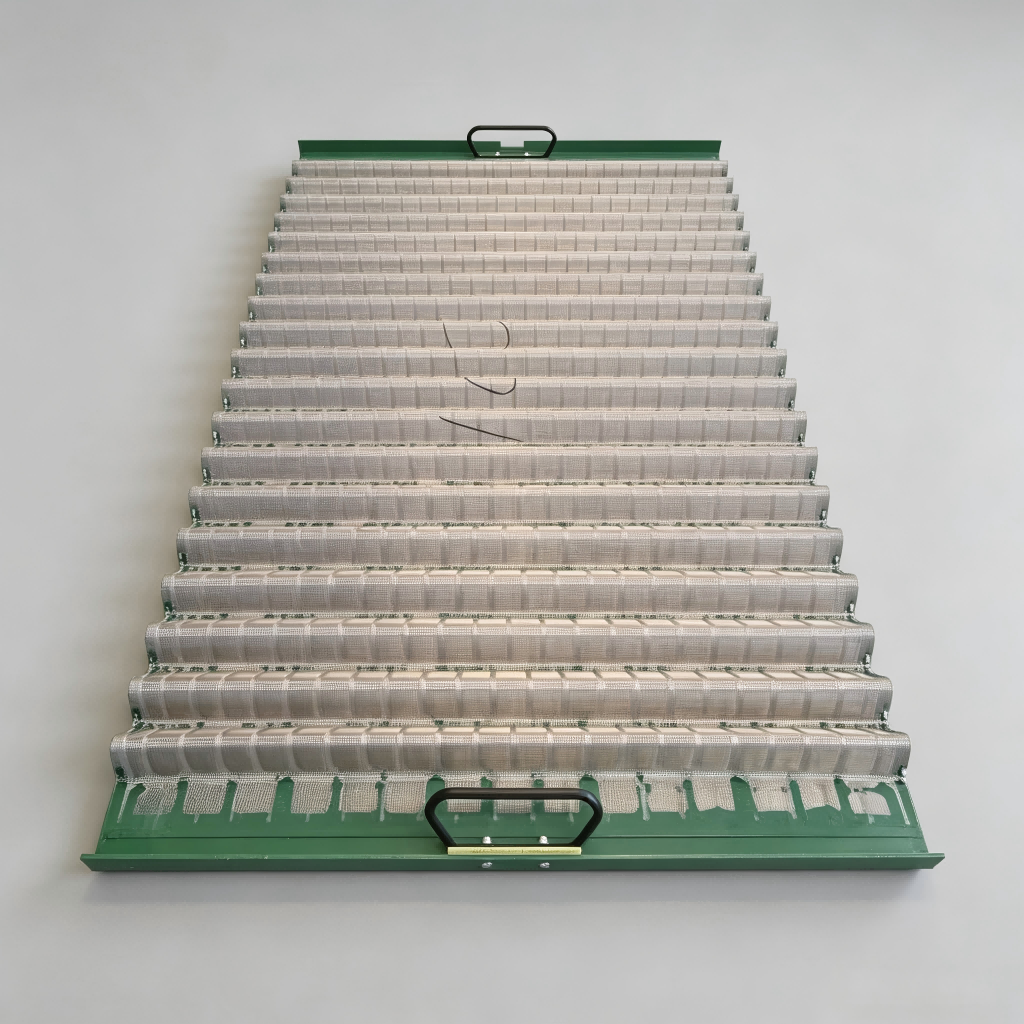

This is a 1068**567mm screens, which use 3.5mm thickness steel sheet ,perforated , coating with epoxy and bond with wire cloth, in one side it is handle, opposite handle side there is a notch, which prevent panel from moving forward or backward .

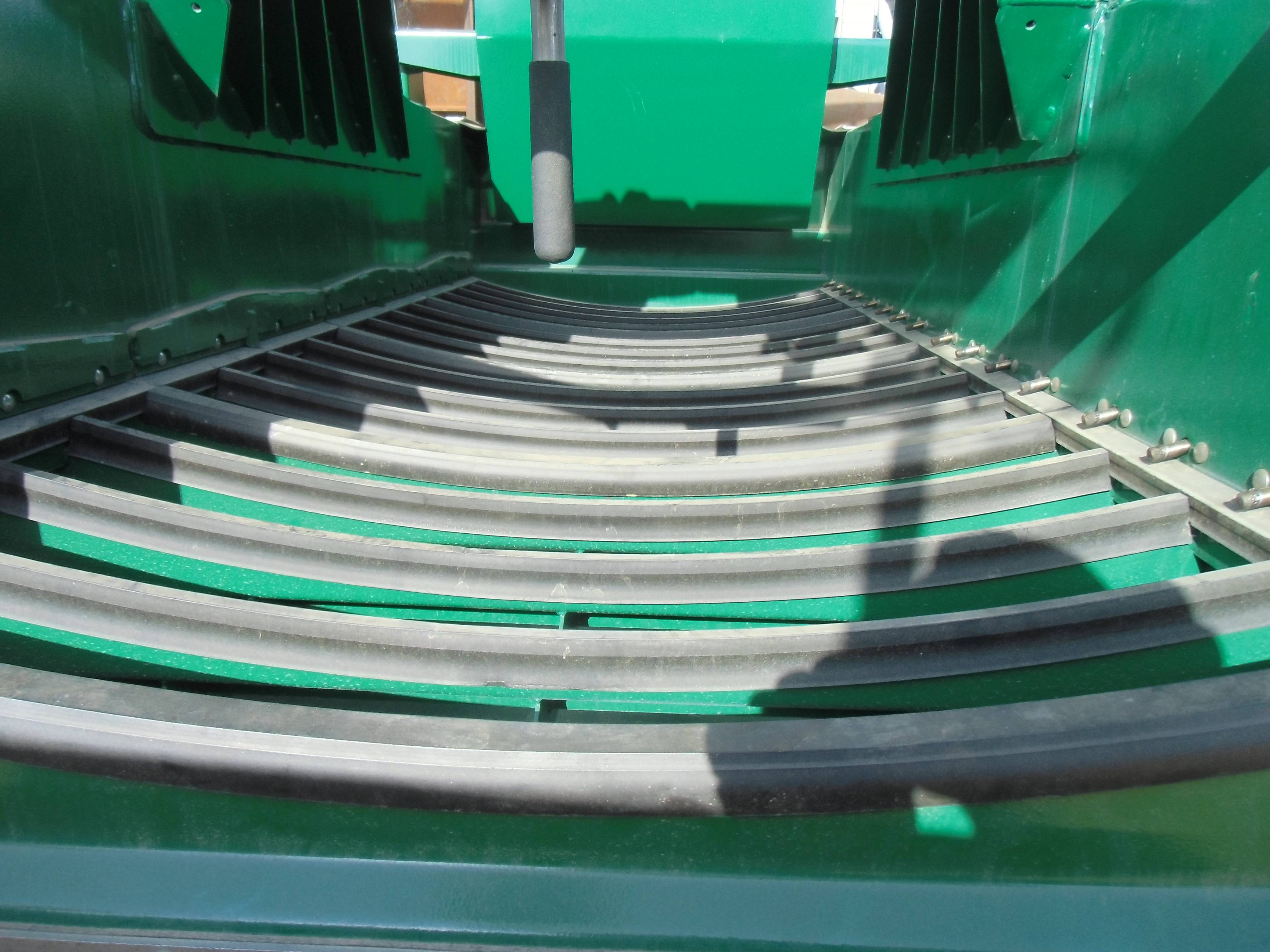

the after applying a strength of pushing, the panel will be a bow shape from middle to the both end.
